214733 196 Revision A

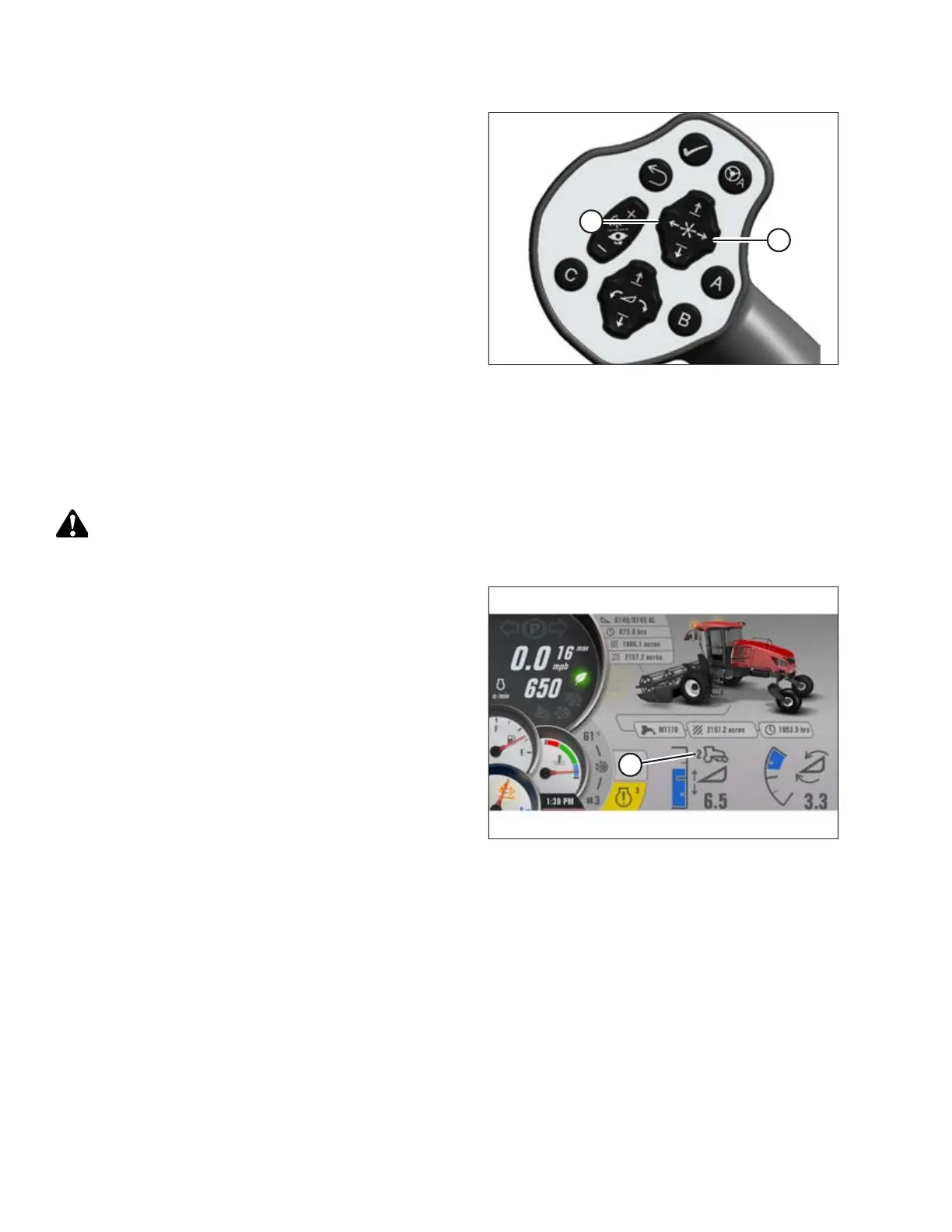

Figure 4.186: GSL
The DWA conveyor speed is also adjustable with the reel fore-
aft switches on the GSL. Press switch (A) to increase speed or
switch (B) to decrease speed.
4.6.7 Controlling the Swath Compressor
The following topic explains how the windrower controls the swath compressor, and describes the automated raise/lower
functions.
CAUTION
To avoid bodily injury or death from unexpected startup of machine, always stop engine and remove key from ignition
before leaving operator’s seat for any reason.
Figure 4.187: HPT Display
Swath compressor height (A) is displayed on the Harvest
Performance Tracker (HPT) with a scale from 0–10.
OPERATION
