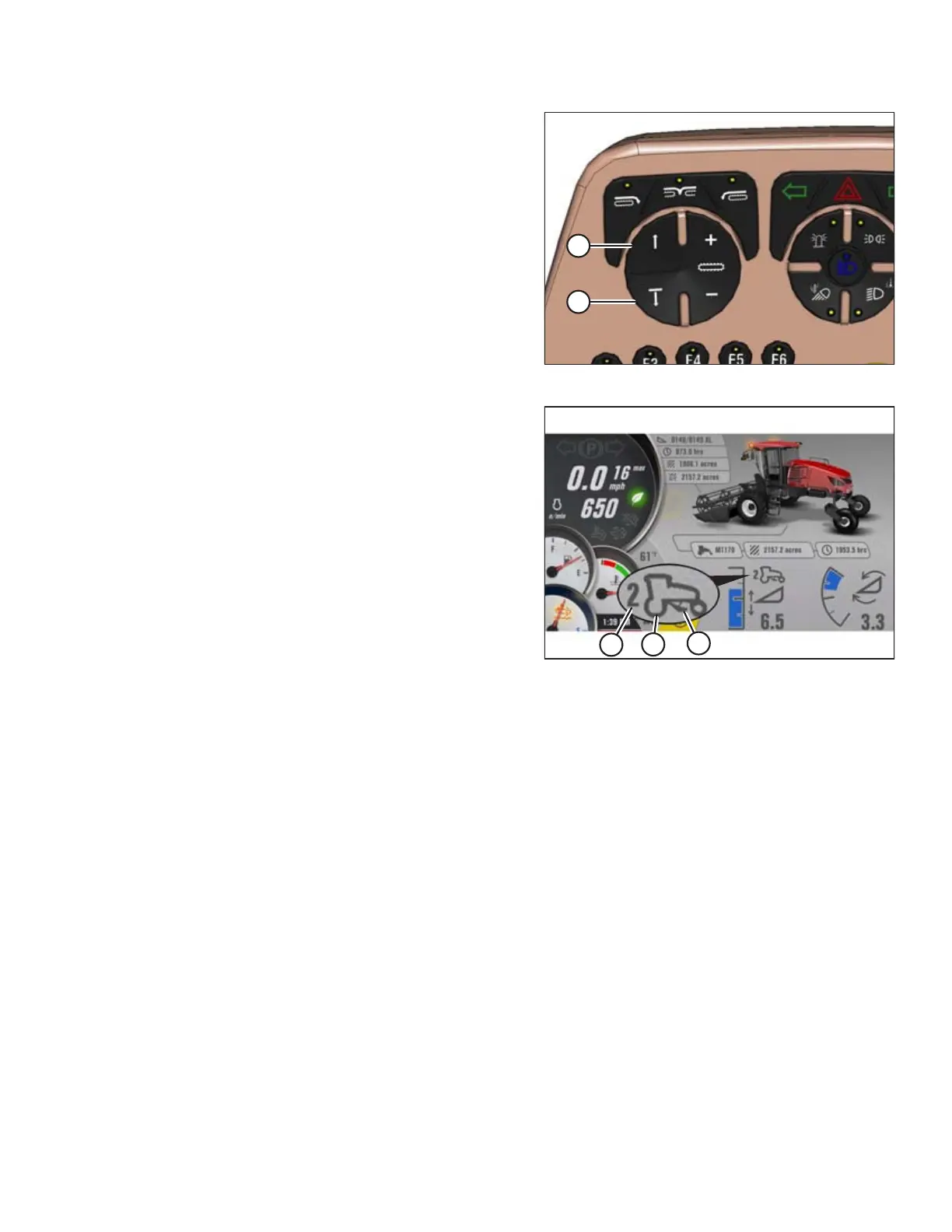

Figure 4.188: Operator’s Console
Switches (A) and (B) on the operator’s console are used to
adjust the position (height). Releasing the switch stops the
movement.
NOTE:
Each momentary press of the switch changes the value by one.
Pressing and holding changes the value by one increment per
second.
NOTE:
The last position set with the console switches becomes the
target height. When an adjustment is made, the display shows
the target value. The system immediately adjusts to attain the
target position. After the last adjustment, the display shows
target value for 5 seconds then reverts to the actual position.
Figure 4.189: HPT Display
Display functions
• As the swath compressor moves up or down, the target
value (A) changes, the windrower icon (B) appears as an
outline, and the swath compressor icon (C) flashes.
• Windrower icon (B) is solid when the target height is
achieved.
• Value (A) is 0, and image (B) is an outline with the swath
compressor fully raised.
• Icon (B) is not visible and automation is disabled without a
header attached. Swath compressor height can still be
adjusted.
Swath compressor automated functions: header engaged
• The swath compressor lowers to target height at a ground speed higher than 2.5 km/h (1.6 mph).
• The swath compressor fully raises as the ground speed transitions through 1.6 km/h (1 mph) during deceleration.
• The swath compressor fully raises when the header is disengaged at a ground speed higher than 1.6 km/h (1 mph).
• An IMPORTANT message to raise the swath compressor appears on the HPT accompanied by a tone when the GSL is
moved out of PARK in engine-forward mode if the swath compressor not fully raised.
Engage the swath compressor lock when the swath compressor is not in use, or when the windrower is in engine-forward
mode. Refer to Locking the Swath Compressor, page 198.
