MacDon M1170 - Every 500 Hours or Annually

214733 306 Revision A
Cleaning Left Cooling Module
This procedure is for cleaning the engine radiator, air conditioning condenser, and screen in the left cab-forward cooling
module.
1015749
B
A

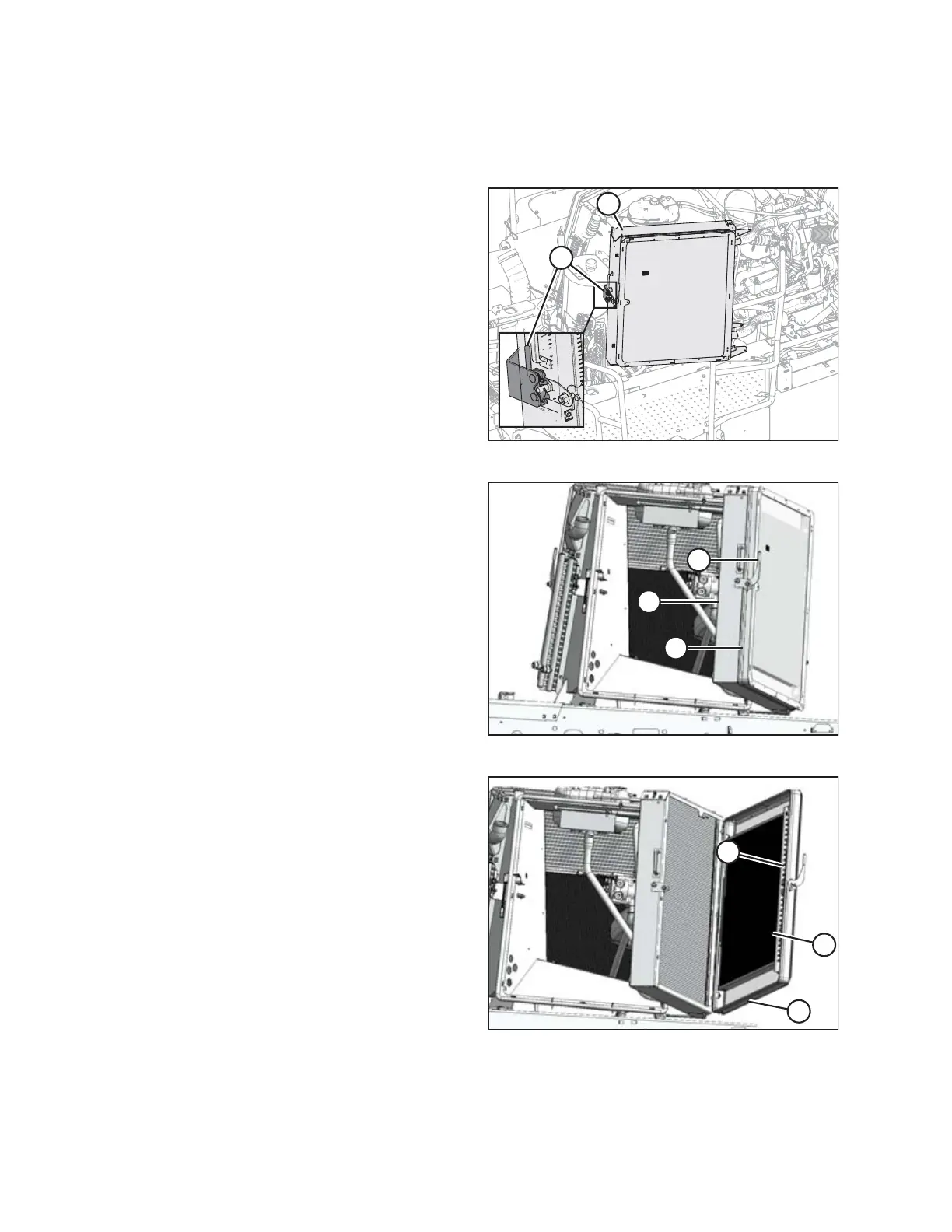

Figure 5.74: Left Cooler Module
1. At left cab-forward side cooler module, push latch (A) and
open engine radiator door (B).
1019887
A
B
C
Figure 5.75: Left Side Coolers
2. Lower lever (A) to release screen/condenser door (B) from
radiator (C), and open screen/condenser door (B).
1019888
A
B
C
Figure 5.76: Left Side Coolers
3. Pull lever (A) up to partially-open condenser (B) away from
screen (C).
MAINTENANCE AND SERVICING
