214733 307 Revision A
1019892
A
B
C
D

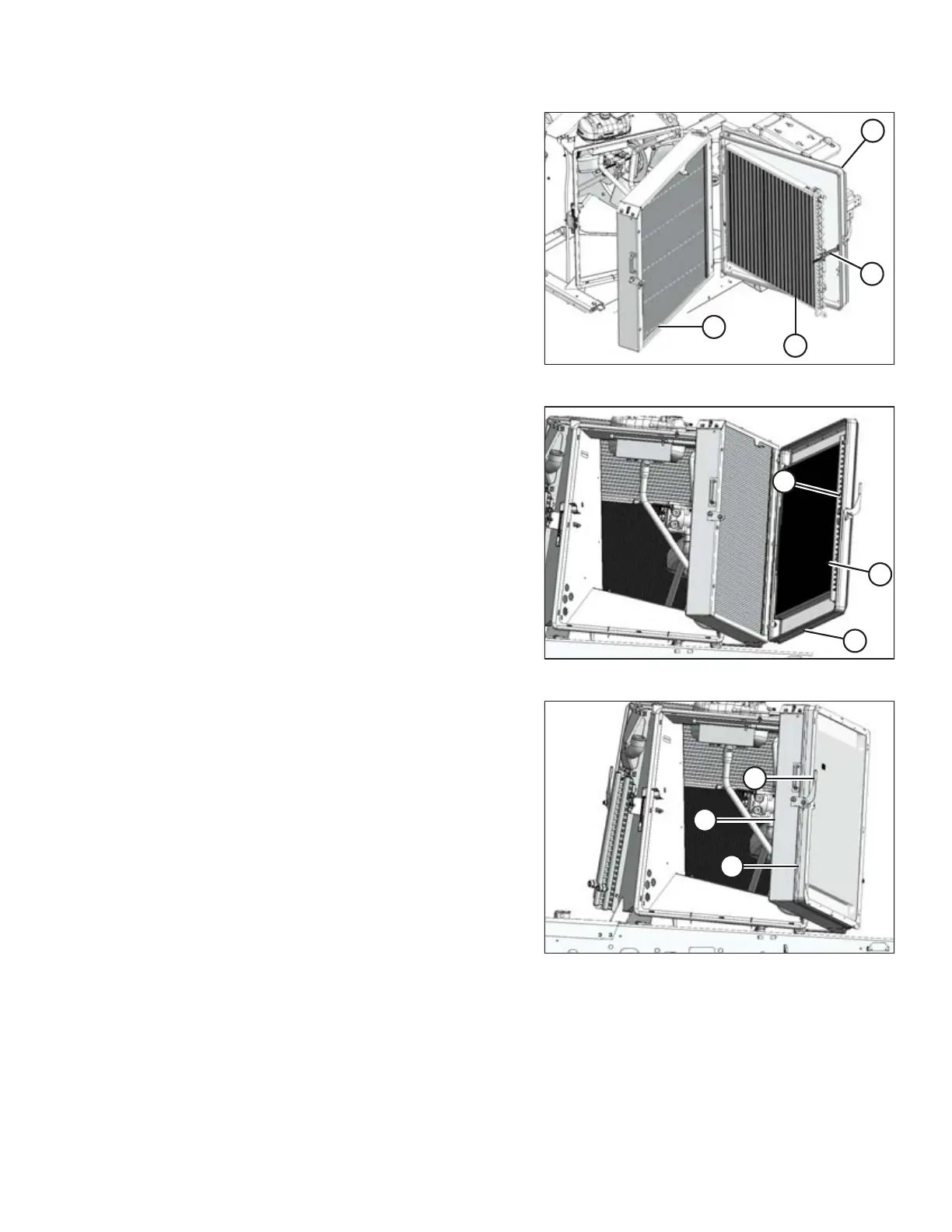

Figure 5.77: Left Side Coolers
4. Secure condenser (A) with bracket (B).
5. Clean debris from radiator (D), condenser (A), and
screen (C) with compressed air.
1019888
A
B
C
Figure 5.78: Left Side Coolers
6. Close condenser (B) into screen (C) and secure with
bracket (A).
1019887
A
B
C
Figure 5.79: Left Side Coolers
7. Close screen/condenser door (B) onto radiator door (C) and
secure with lever (A).
MAINTENANCE AND SERVICING
