MacDon M1170 - Windrower Break-In Inspections and Maintenance Schedule

214733 236 Revision A
1015212
A

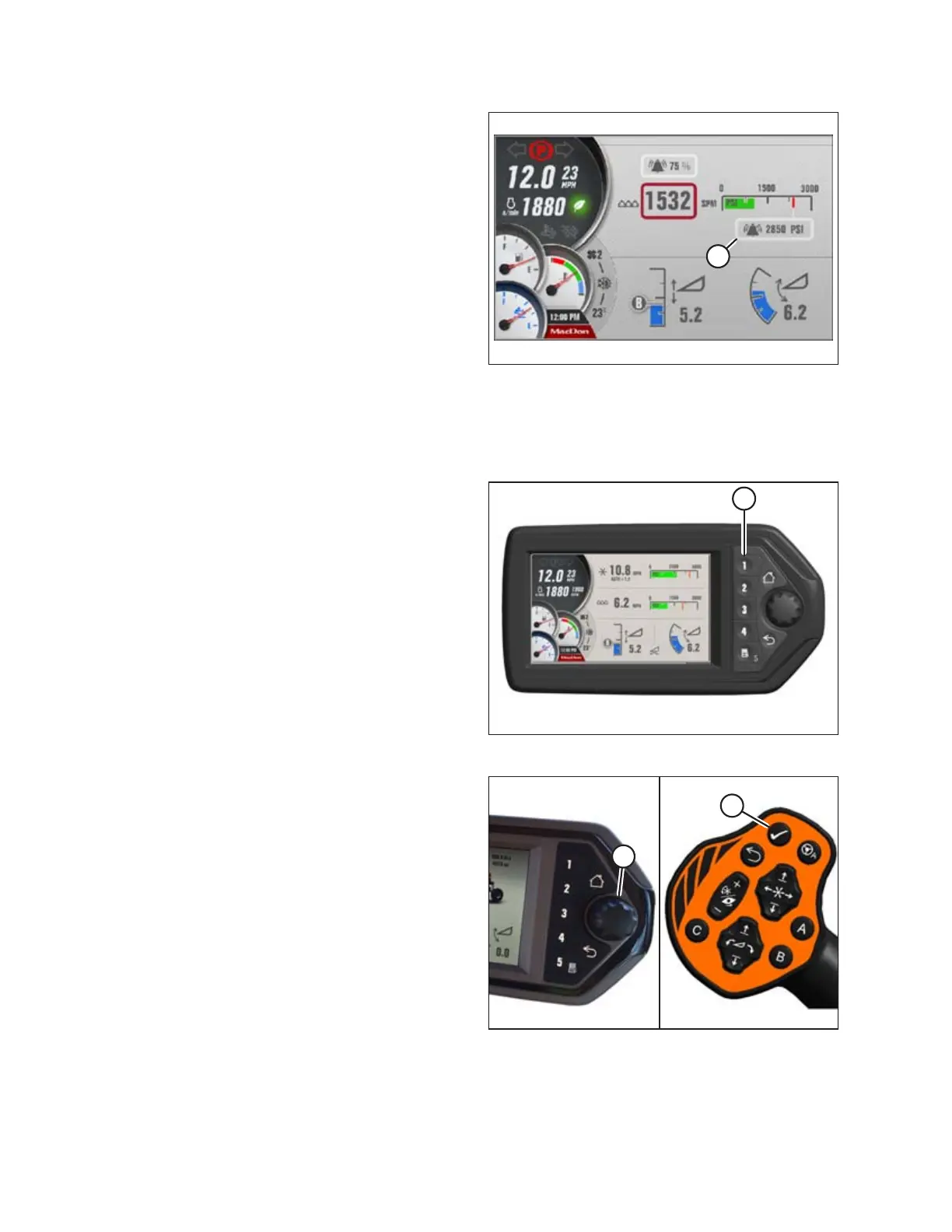

Figure 4.273: Knife Screen
3. Scroll to the KNIFE ALARM PRESSURE setting (A), and use
the knob to select it.
4. Turn knob to change the ALARM set-point in window (A).
Scrolling past the highest setting turns the alarm off. When
the alarm point is off, the digital value is replaced with
three dashed lines.
5. Adjust reel alarm pressure set-point to desired value, and
press knob to select it. Factory setting is 24,821 kPa
(3600 psi).
Adjusting Knife Speed Alarm
This adjustment requires the header to be in operation.
1019648
A
Figure 4.274: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
draper RUN SCREEN 1.
1014578
A
B
Figure 4.275: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the Harvest Performance
Tracker (HPT) or the SELECT button (B) on the ground speed
lever (GSL) to display the QuickMenu system.
OPERATION
