MacDon M1170 - Draper Slip Warning

214733 215 Revision A
Draper Slip Warning
1019524
A

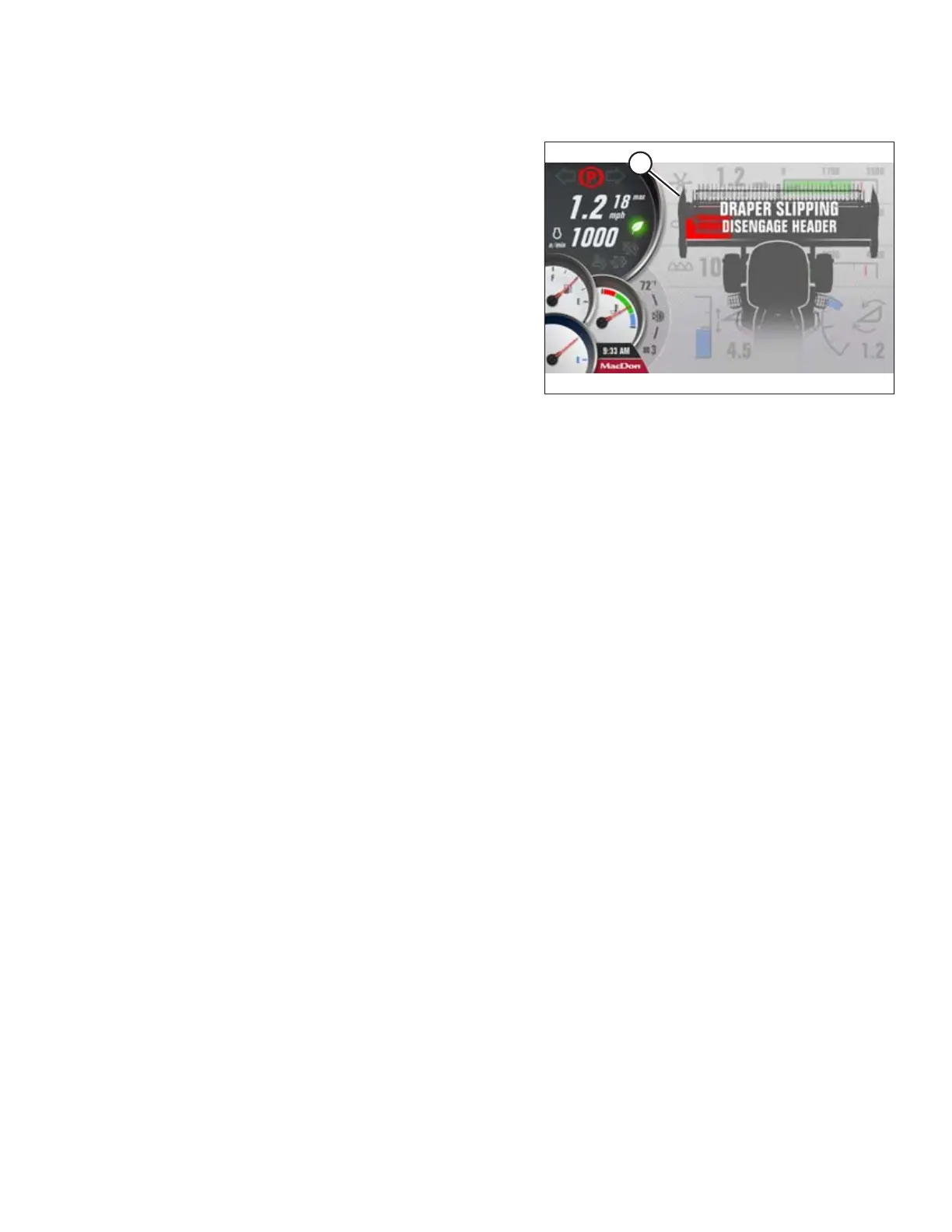

Figure 4.231: Draper Slip Warning
If the left or right draper idler roller begins to slip, a warning
tone will sound and one of the following messages (A) will
appear on the Harvest Performance Tracker (HPT) screen:
• Left draper slipping. Disengage header.
• Right draper slipping. Disengage header.
The Operator cannot cancel the message.
NOTE:
A slipping draper can severely damage the draper belts.
Slippage is typically caused by debris inside the draper.
NOTE:
A draper slip sensor failure will disable the sensor and a fault
will appear on the Harvest Performance Tracker (HPT) screen.
Contact your MacDon Dealer for service.
NOTE:
Draper slip warning is disabled when a double draper drive kit is
installed.
OPERATION
