MacDon M1170 - Detaching R1 Series Header

214733 178 Revision A
Detaching R1 Series Header
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
CAUTION
Check to be sure all bystanders have cleared the area.
1014786
A

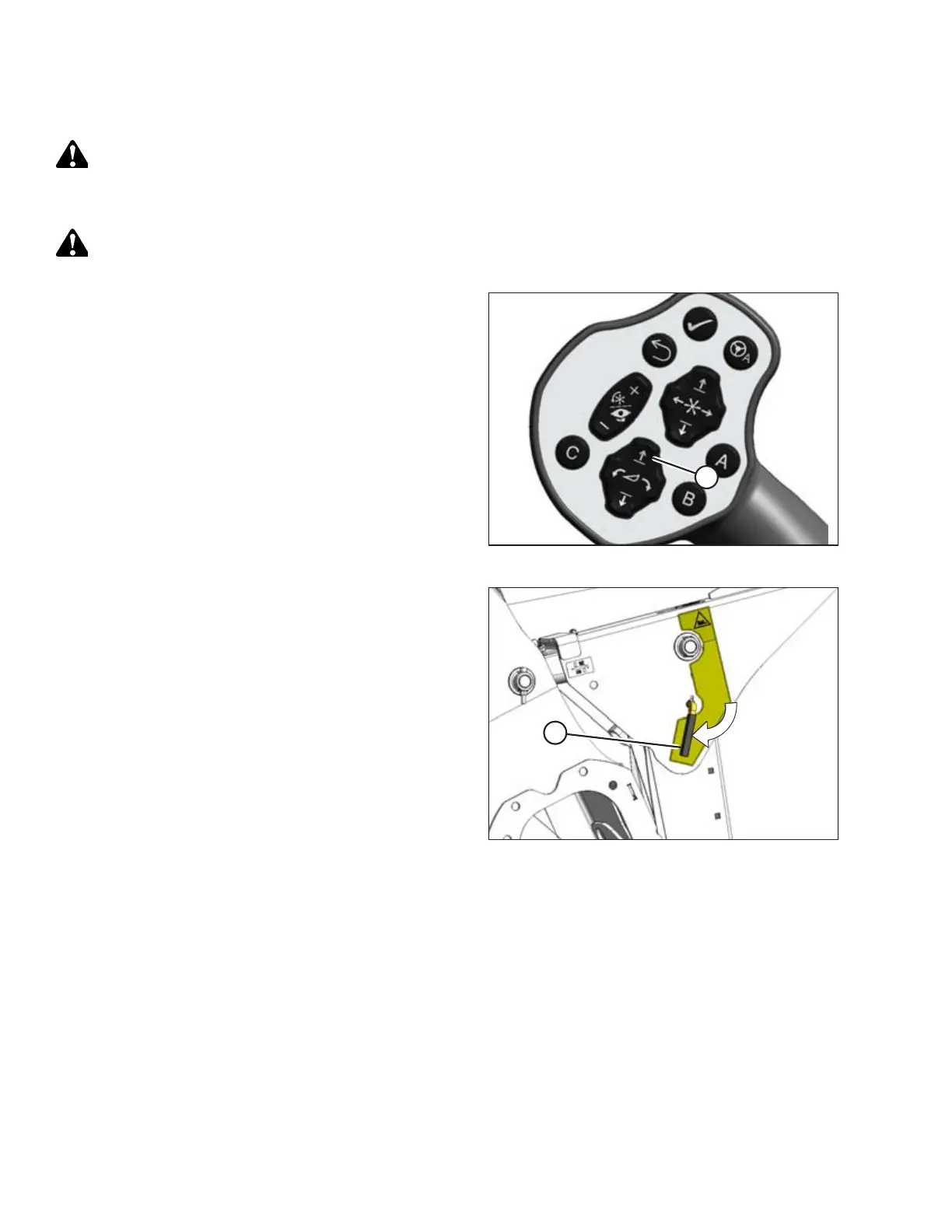

Figure 4.148: GSL
1. Start the engine, and press switch (A) to raise the header to
the maximum height.
2. Stop the engine, and remove the key.
1019357
A
Figure 4.149: Safety Props
3. Disengage safety props by turning lever (A) away from
header to raise safety prop until lever locks into vertical
position. Repeat for opposite cylinder.
4. Open left side platform. Refer to 5.4.1 Opening Platform, page 258.
OPERATION
