MacDon M1170 - Aligning Headlights: Cab-Forward

214733 365 Revision A
1020003
C
A
B
D

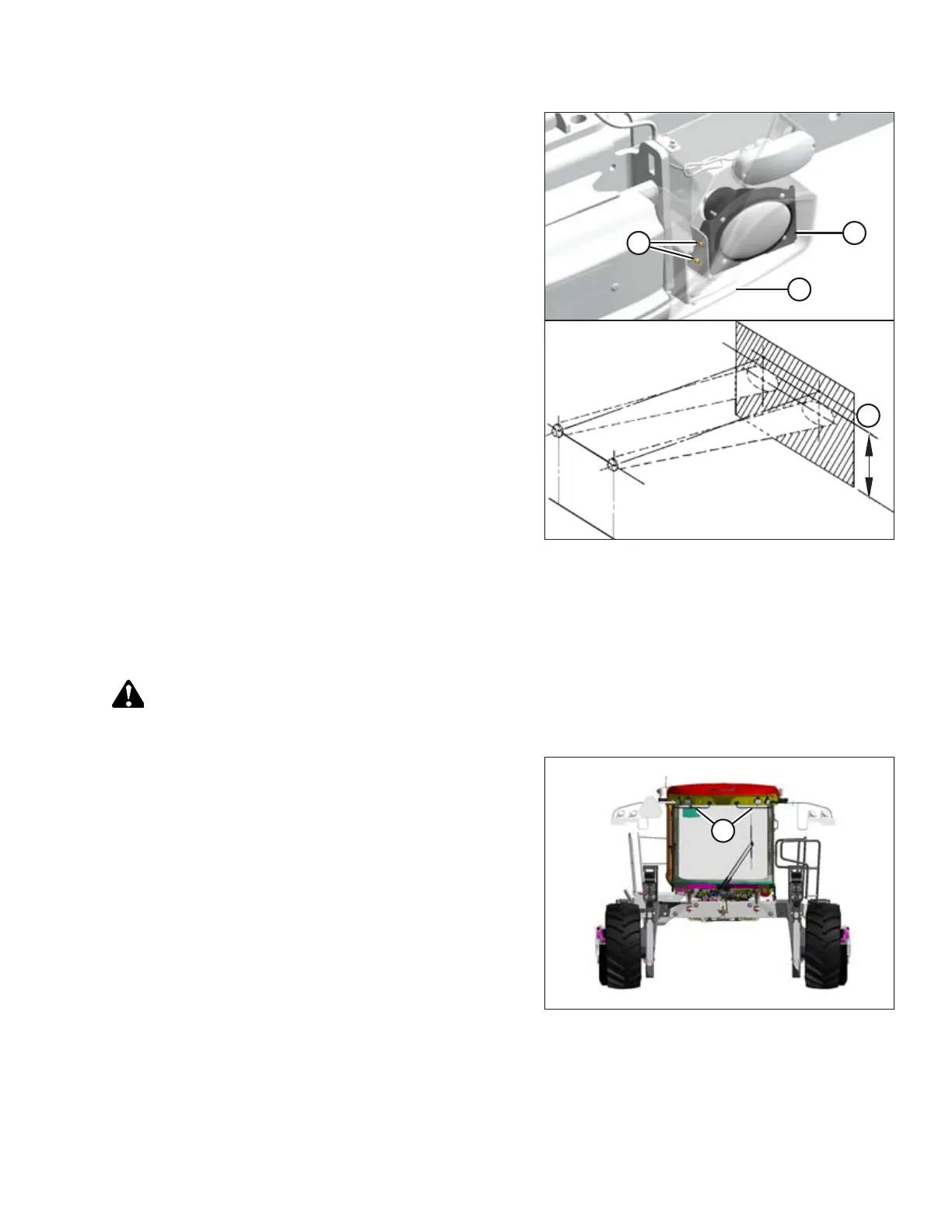

Figure 5.167: Left Engine-Forward Headlight – Right
Opposite
4. Adjust headlight (A) with adjusting bolts (B) so that the
beam’s maximum height above the ground does not exceed
1263 mm (49-3/4 in.) (C). Access the bolts by reaching
under the headlight bezel (D).
Aligning Headlights: Cab-Forward
Adjust field lights when in the field (or equivalent) to suit Operator preference.
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1015825
A
Figure 5.168: Windrower in Cab-Forward
1. Hold onto handholds (A) on the cab front corners, and
stand on header anti-slip strips.
MAINTENANCE AND SERVICING
