Disconnecting a Battery
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.

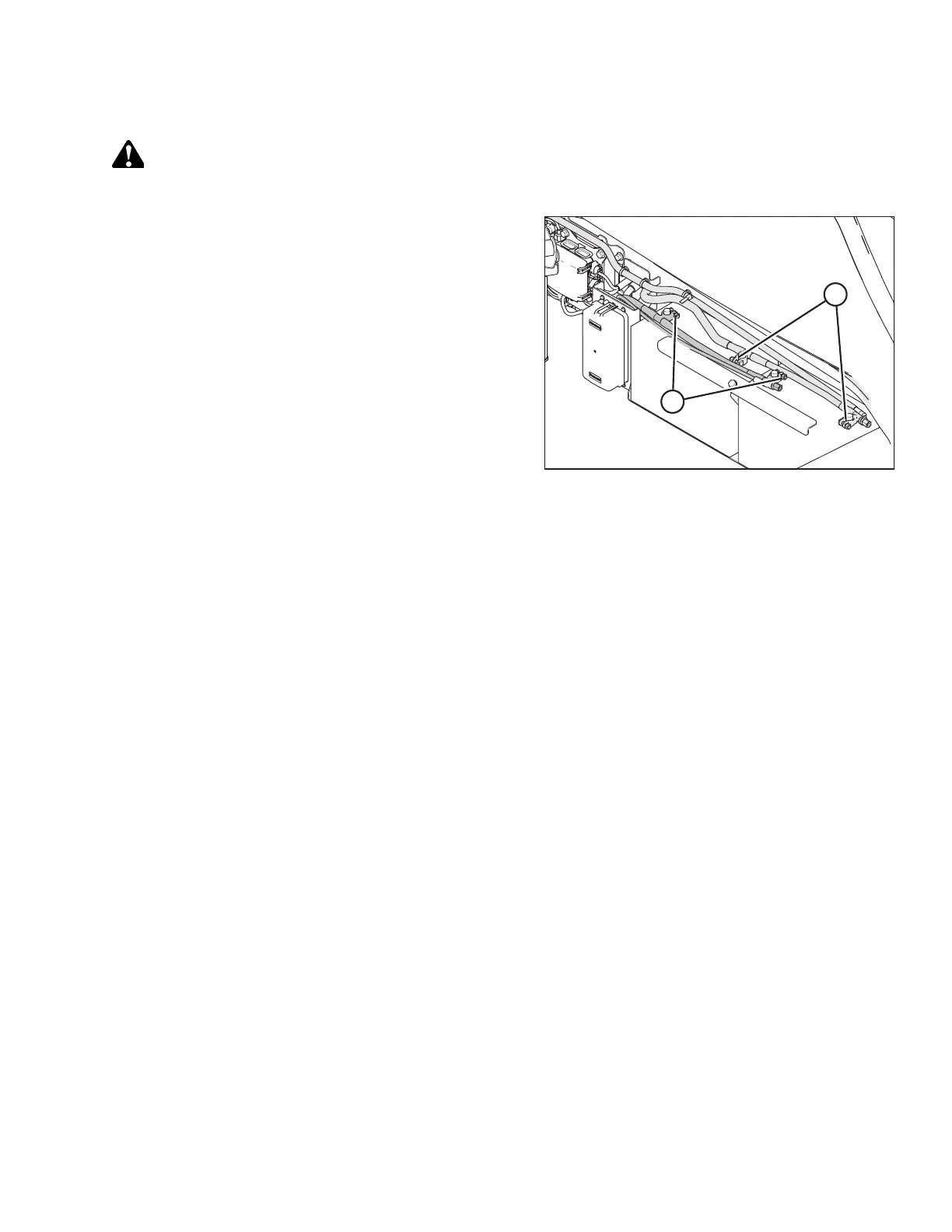

Figure 5.140: Battery Location
1. Stop the engine and remove the key.
2. Open the battery cover. Refer to Opening Battery Cover,
page 343.
3. Remove the black plastic covers from the negative cable
clamps (B). Loosen clamps and remove cable from
batteries.
4. Remove the red plastic covers from positive cable
clamps (A). Loosen the clamps and remove cable from
batteries.
MAINTENANCE AND SERVICING
