3.9 Rear View Mirrors

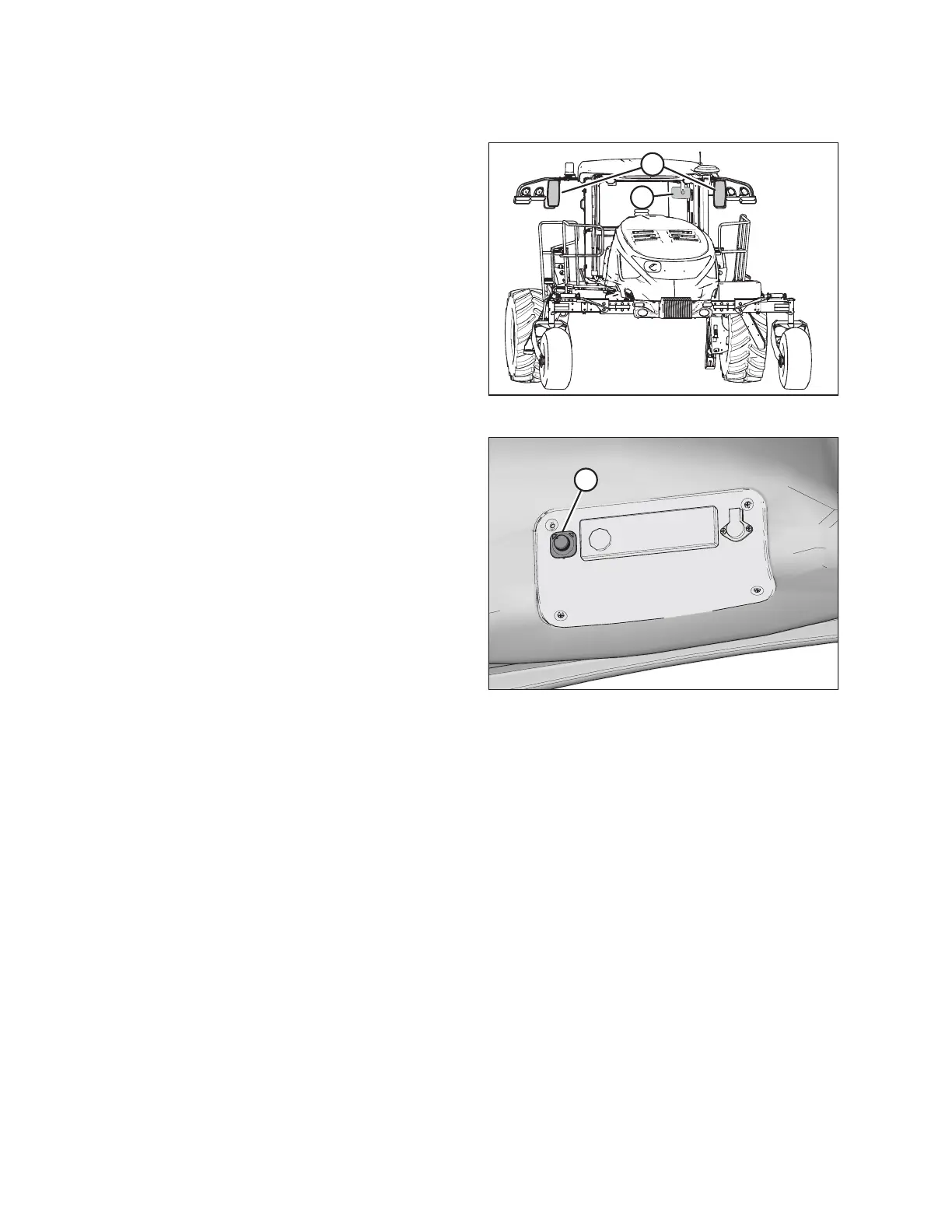

Figure 3.34: Mirrors
Two outside-mounted adjustable mirrors (A) provide a rear view
when the windrower is in cab-forward mode.
A single interior-mounted mirror (B) provides a rear view in the
engine-forward mode.
The mirror/light assemblies (A) are designed to fold back if
accidentally struck.
Figure 3.35: Mirror Adjustment Knob
The deluxe cab is equipped with power adjustable exterior
mirrors which can be adjusted using knob (A) located next to
the radio inside the cab.
OPERATOR’S STATION
