3.10 Cab Temperature
The cab environment is controlled by a climate control system that provides clean air-conditioned or heated air.
The heater/evaporator/blower assembly is located under the cab floor and is accessible from beneath the windrower.
3.10.1 Heater Shut-Off Valve

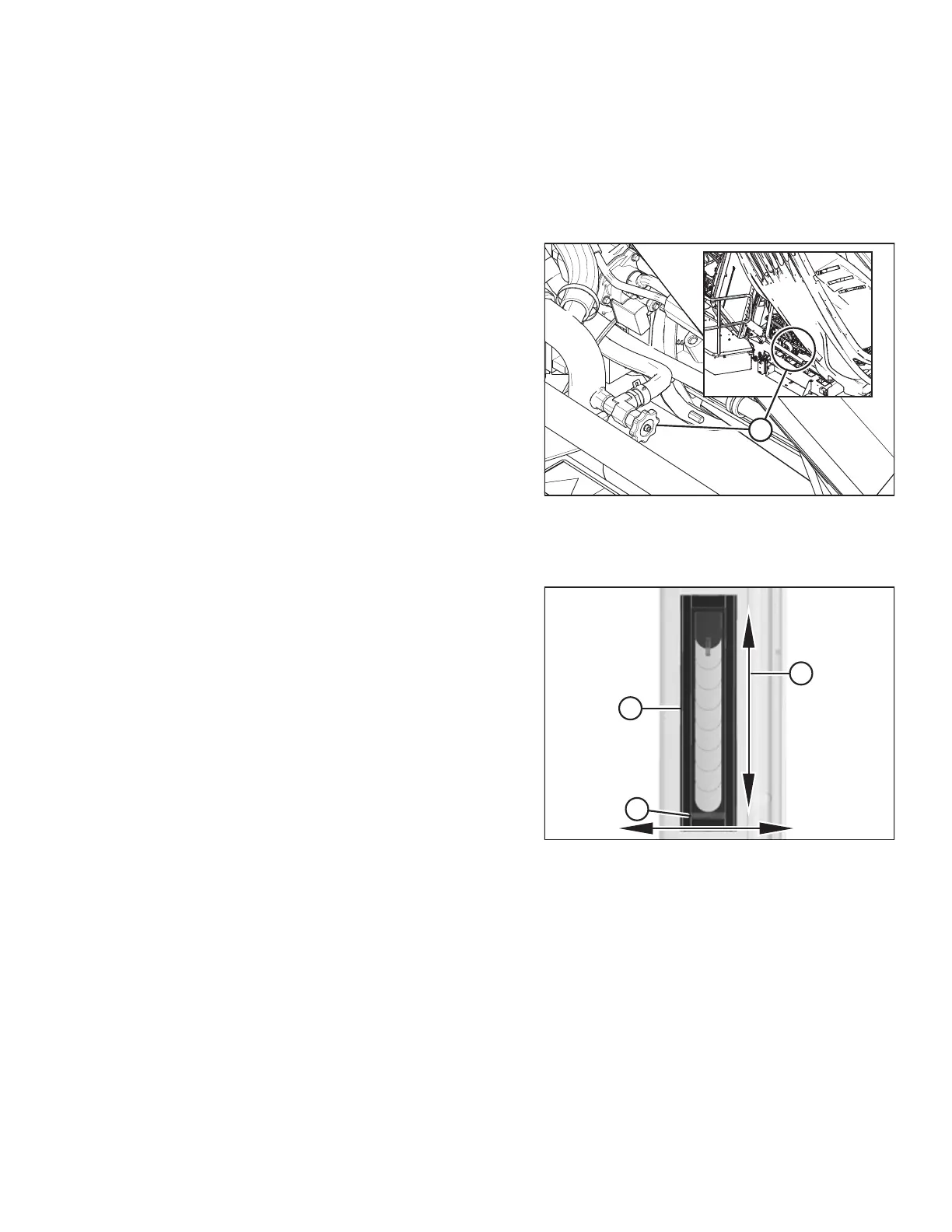

Figure 3.36: Heater Shut-Off Valve
A shut-off valve (A) at the engine allows the cab heater to be
isolated from the engine coolant.
The valve must be open to provide heat to the cab, but can be
closed for maximum cooling.
3.10.2 Air Distribution
Figure 3.37: Adjustable Air Vents
Cab air distribution is controlled through adjustable air vents (A)
located in the cab posts.
You can adjust the vent to open/close (B) or to change the
direction (C) of the air flow.
