MacDon M1170 - Operating with an A40 DX Auger Header

214733 228 Revision A
4.8 Operating with an A40DX Auger Header
The M1170 is factory-equipped to run an A40DX Auger Header.
For attachment instructions, refer to Attaching an A40DX Auger Header, page 144.
4.8.1 Reel/Auger Speed
Refer to your header operator’s manual for recommended reel speed settings for your particular crop.
Adjusting Reel Speed
Reel speed is displayed in either rpm, mph, or km/h (depending on the global units selection). The default reel speed is 60
rpm and can be set to auto or manual mode:
• AUTO mode: Minimum reel speed and operating reel speed differential relative to ground speed are set, and reel speed
is maintained relative to ground speed. Refer to Setting Reel Speed in Auto Mode, page 228.
• MANUAL mode: Reel speed is set and is maintained regardless of ground speed. Refer to Setting Reel Speed in Manual
Mode, page 230.
Setting Reel Speed in Auto Mode
This adjustment requires the header to be in operation.
1019648
A

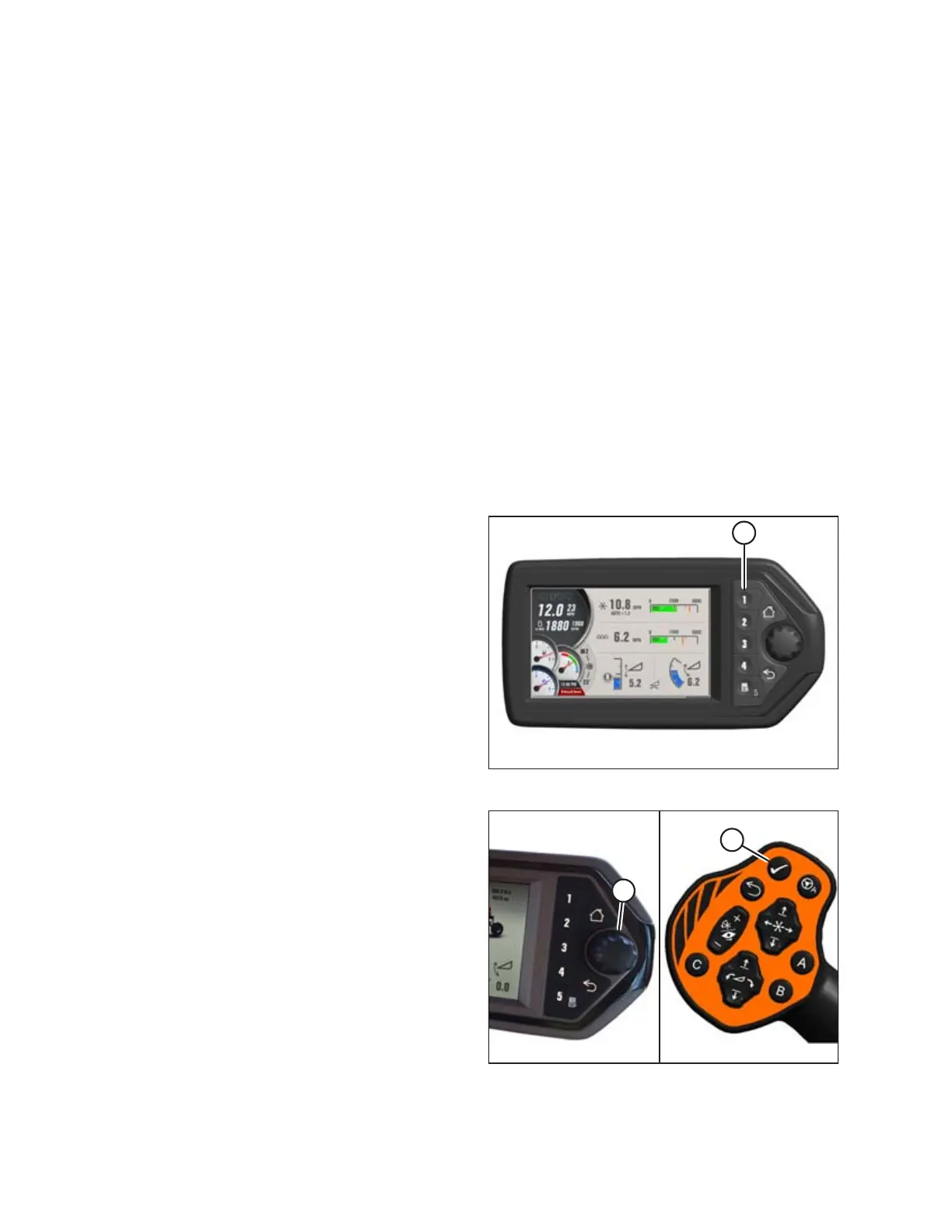

Figure 4.253: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft
key 1 (A) on the Harvest Performance Tracker (HPT) to
display auger RUN SCREEN 1.
1014578
A
B
Figure 4.254: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the Harvest Performance
Tracker (HPT) or the SELECT button (B) on the ground
speed lever (GSL) to display the QuickMenu system.
