Checking Engine Oil Level
Check engine oil level frequently and watch for any signs of leakage.
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
NOTE:
During the break-in period, a higher than usual oil consumption should be considered normal.
NOTE:
Oil can be checked without opening the hood.
1. Operate the engine at low idle and check for leaks at the filter and drain plug.
2. Stop the engine and remove the key. Wait about five minutes.
1022834
A

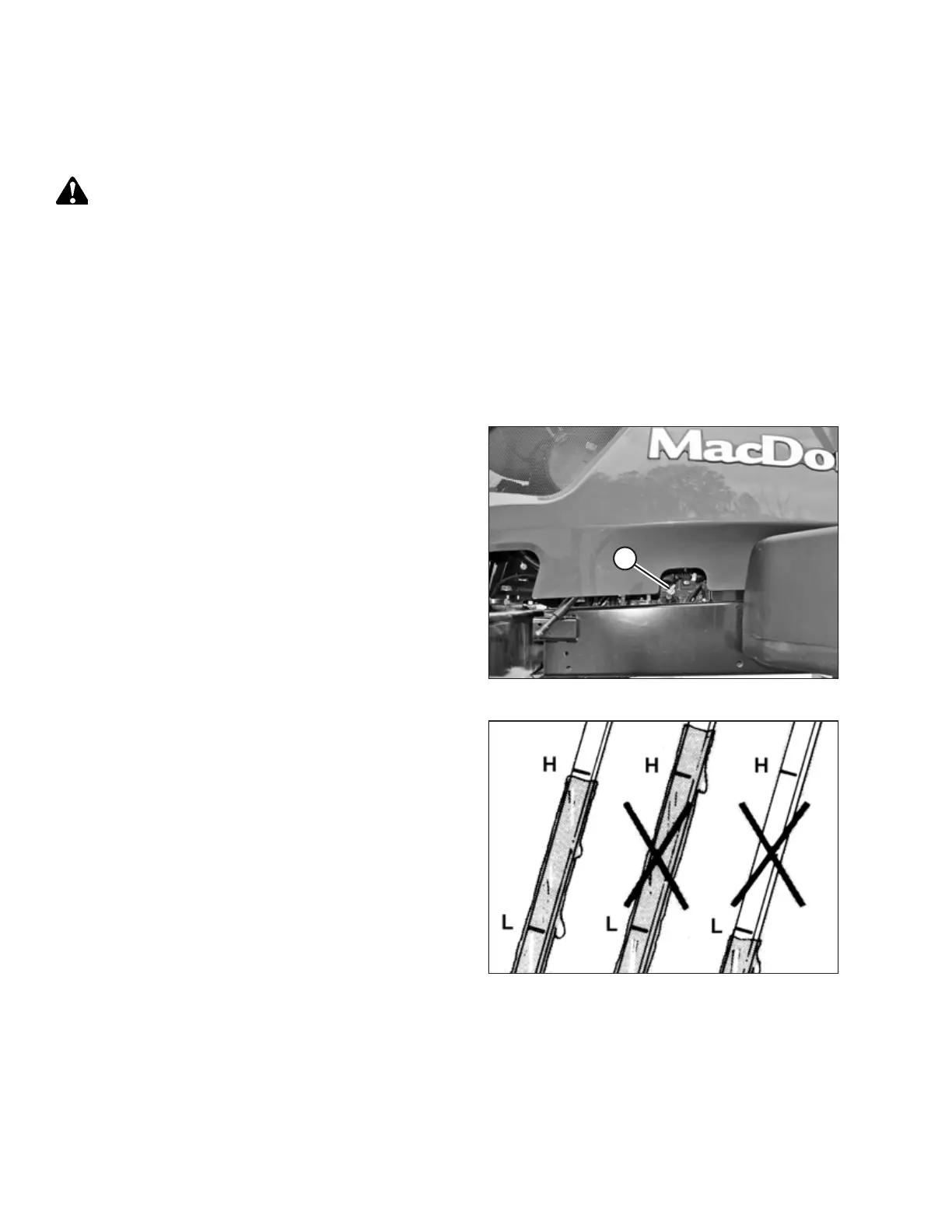

Figure 4.10: Dipstick Location
3. Remove dipstick (A) by turning it counterclockwise to
unlock.
4. Wipe dipstick clean and reinsert it into engine.
1000074
Figure 4.11: Engine Oil Level
5. Remove dipstick again and check oil level. Oil level should
be between LOW (L) and HIGH (H). If below the LOW mark,
add oil.
NOTE:
Adding 1.9 liters (2 US quarts) will raise the level from LOW
to HIGH. To add oil, refer to Adding Engine Oil, page 288.
6. Replace dipstick and turn it clockwise to lock.
