MacDon M1170 - Detaching a D1 X or D1 XL Series Header

214733 165 Revision A
1020152
A
B
C
D

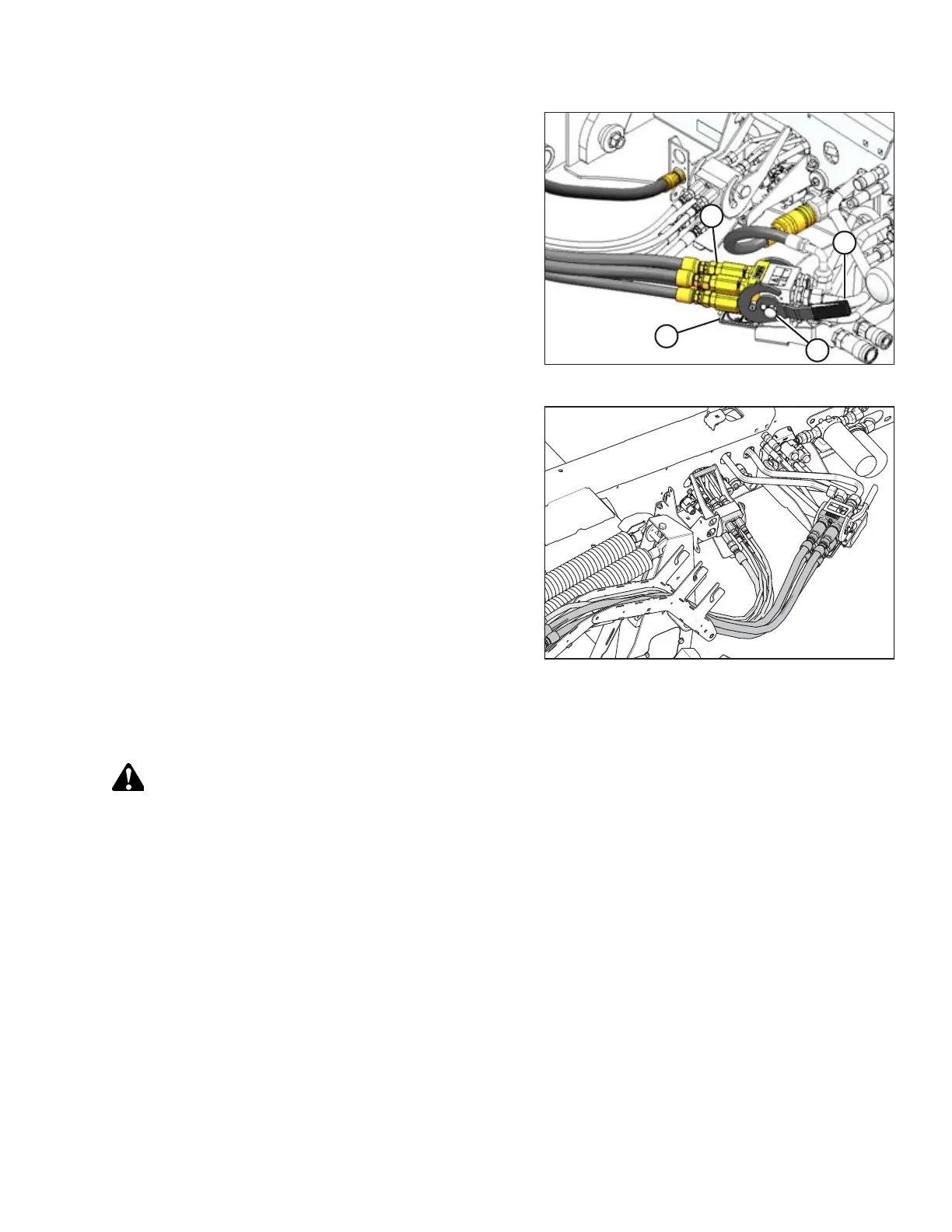

Figure 4.114: Knife/Reel Drive Multicoupler
11. Retrieve knife and reel drive multicoupler (A) from hose
management arm.
12. Push knob (B) on hydraulic receptacle and pull handle (C)
fully away from windrower.
13. Open cover (D) and position coupler onto receptacle. Align
pins in coupler with slots in handle (C) and push handle
toward windrower so that coupler is locked onto receptacle
and knob (B) snaps out.
14. Close platform. Refer to 5.4.2 Closing Platform, page 258.
1015750
Figure 4.115: Hydraulic Multicouplers and Hose
Routing
15. Ensure hydraulic hose routing is as straight as possible and
avoids potential rub/wear points.
Detaching a D1X or D1XL Series Header
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Lower the reel fully.
2. Lift the header fully.
3. Stop the engine and remove the key from the ignition.
OPERATION
