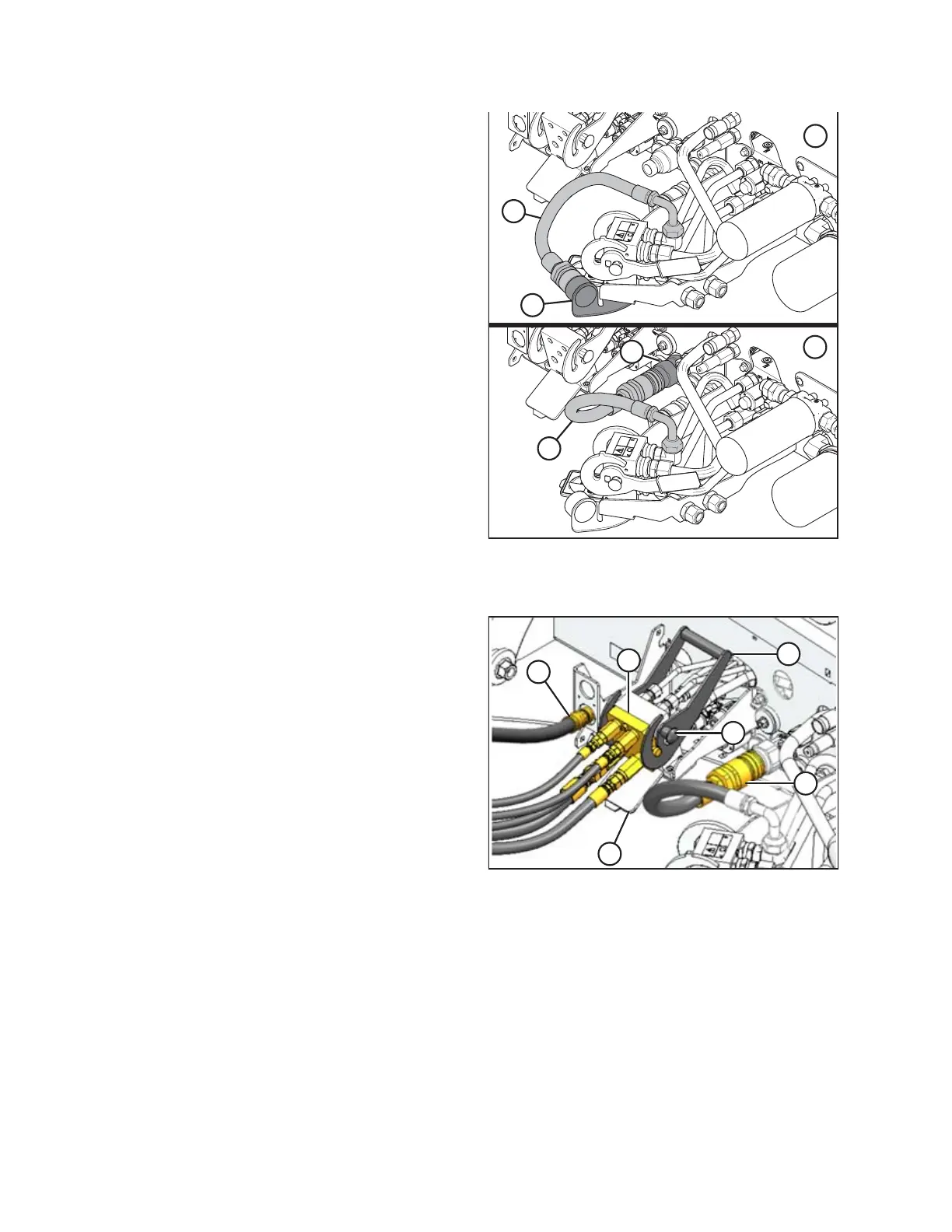

Figure 4.112: Knife Pressure Hose Positions
1 - Hose in Storage Position (Rotary Configuration)
2 - Hose to Knife Pressure Receptacle (Auger/Draper Configuration)
M1170 configured with R1 Hydraulic Drive Bundle (B6621):
5. If switching from a rotary header to a draper header,
remove hose (A) from storage location (B) and connect to
knife pressure receptacle (C) on frame.
Figure 4.113: Draper/Reel Multicoupler
7. Retrieve draper drive and reel control multicoupler (A) from
hose management arm.
8. Push knob (B) on hydraulic receptacle and pull handle (C)
fully away from windrower.
9. Open cover (D) and position coupler onto receptacle. Align
pins in coupler with slots in handle (C) and push handle
toward windrower so that coupler is locked onto receptacle
and knob (B) snaps out.
NOTE:
Hose connector (F) only on M1170 configured with R1
Hydraulic Drive Bundle (B6621).
10. Remove cover from electrical connector (E), push electrical
connector onto receptacle, and secure by turning collar on
electrical connector clockwise.
