Attaching a D1X or D1XL Series Header
NOTE:
Draper header supports must be installed onto the windrower lift linkage before starting this procedure. Refer to Attaching
Draper Header Supports, page 157.
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.

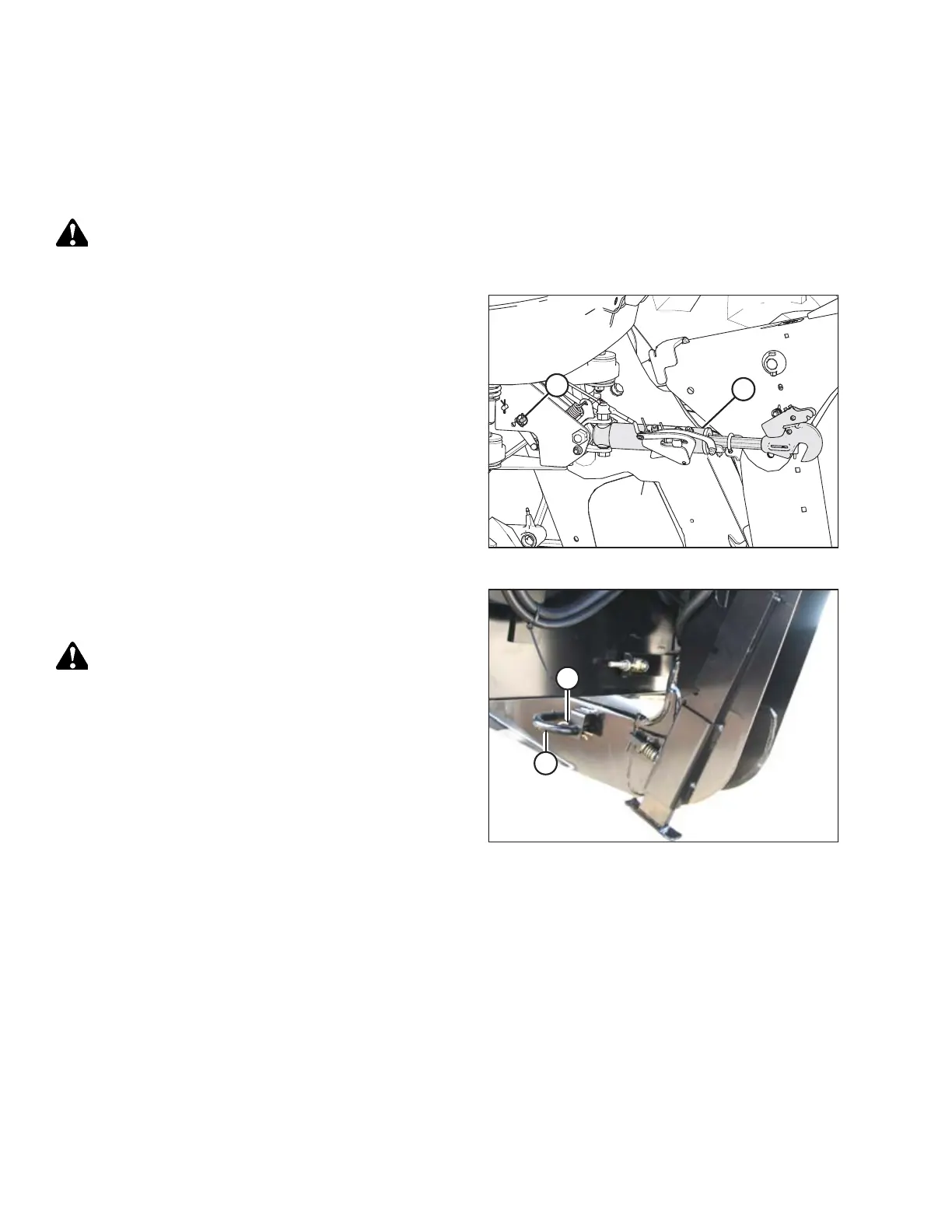

Figure 4.96: Center-Link without Self-Alignment
1. Hydraulic Center-Link without Self-Alignment: Relocate
pin (A) in frame linkage as required to raise the center-
link (B) until the hook is above the attachment pin on the
header.
IMPORTANT:
If the center-link is too low, it may contact the header as
the windrower approaches the header for hookup.
Figure 4.97: Header Leg
2. Remove hairpin (A) from pin (B), and remove pin (B) from
header leg. Repeat on the opposite header leg.
CAUTION
Check to be sure all bystanders have cleared the area.
3. Start engine.
