5.10.4 Adding Wheel Drive Lubricant
NOTE:
Do NOT mix lubricants of different brands or characteristics.
NOTE:
For lubricant specifications, refer to 5.1.3 Lubricants, Fluids, and System Capacities, page 249.
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.

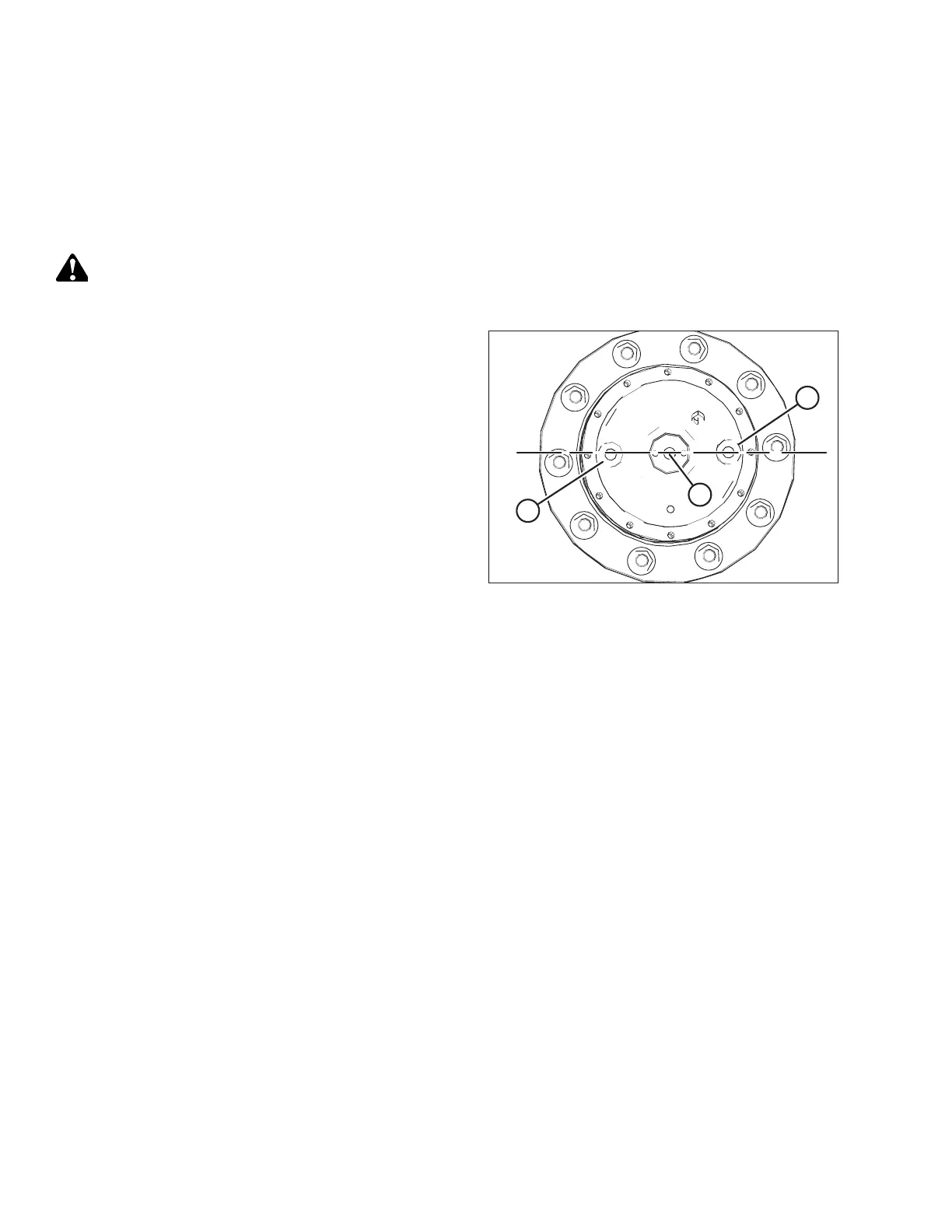

Figure 5.99: Drive Wheel
1. Rotate the wheel drive so plugs (A) and (B) are horizontally
aligned with the center (C) of the hub.
2. Stop the engine and remove the key.
3. Remove either plug (A) or (B).
NOTE:
PRIOR TO FIRST CHANGE: Use SAE 85W-140, API service,
class GL-5, extreme pressure gear lubricant (non-synthetic).
NOTE:
AFTER FIRST CHANGE: Use SAE 75W-140 or 80W-140, API
service, class GL-5, fully synthetic transmission lubricant
(SAE J2360 preferred).
4. Add lubricant through one of the ports until the lubricant
reaches the bottom of the ports and begins to run out.
5. Reinstall and tighten plug (A) or (B).
6. Start up and operate the windrower for a few minutes, then stop and check the oil level. Refer to 5.10.3 Checking
Wheel Drive Lubricant Level, page 317. If necessary, add more oil.
