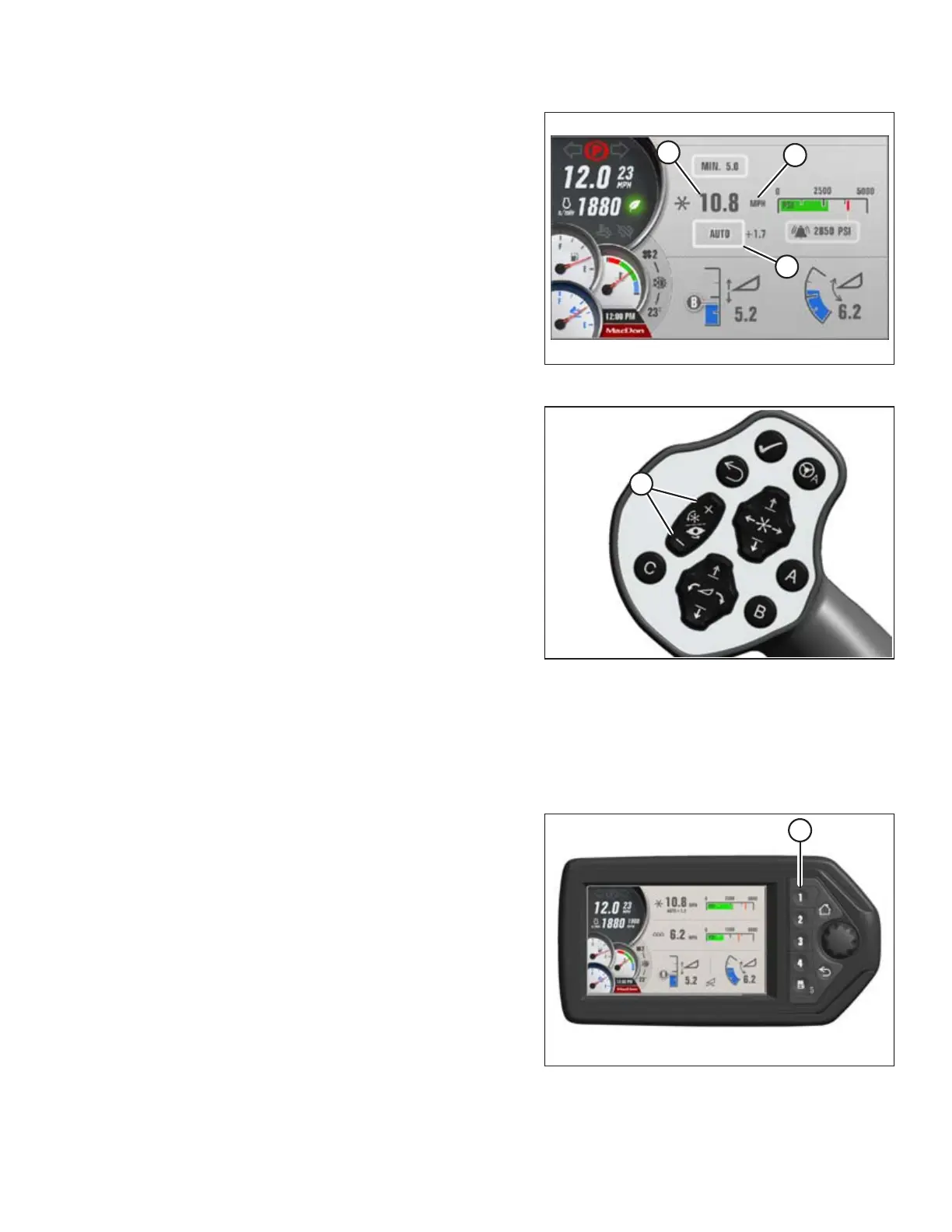

Figure 4.261: Auger Header Reel Screen
4. Scroll to mode window (A) and select it.
5. Scroll in pop-up window to MANUAL and select it.
6. Scroll to UNITS (B) and select desired unit (i.e., rpm, mph,
or km/h).
7. Scroll to SPEED VALUE (C) and select it.
1019559
A
Figure 4.262: GSL
8. Use REEL SPEED switches (A) on GSL to set reel speed. The
desired speed increases 1 rpm (0.1 mph or 0.2 km/h if set
to mph or km/h) per momentary press, or continuous
scrolling if switch is pressed and held.
Adjusting the Reel/Auger Alarm Pressure
Adjusting the reel/auger alarm allows the operator to set an alert to inform them that the reel is operating at a desired
pressure. A lower setting will cause the alarm to be set off more often; a higher setting will allow the alarm to be set off
less frequently. This adjustment requires the header to be in operation.
1019648
A
Figure 4.263: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
auger RUN SCREEN 1.
