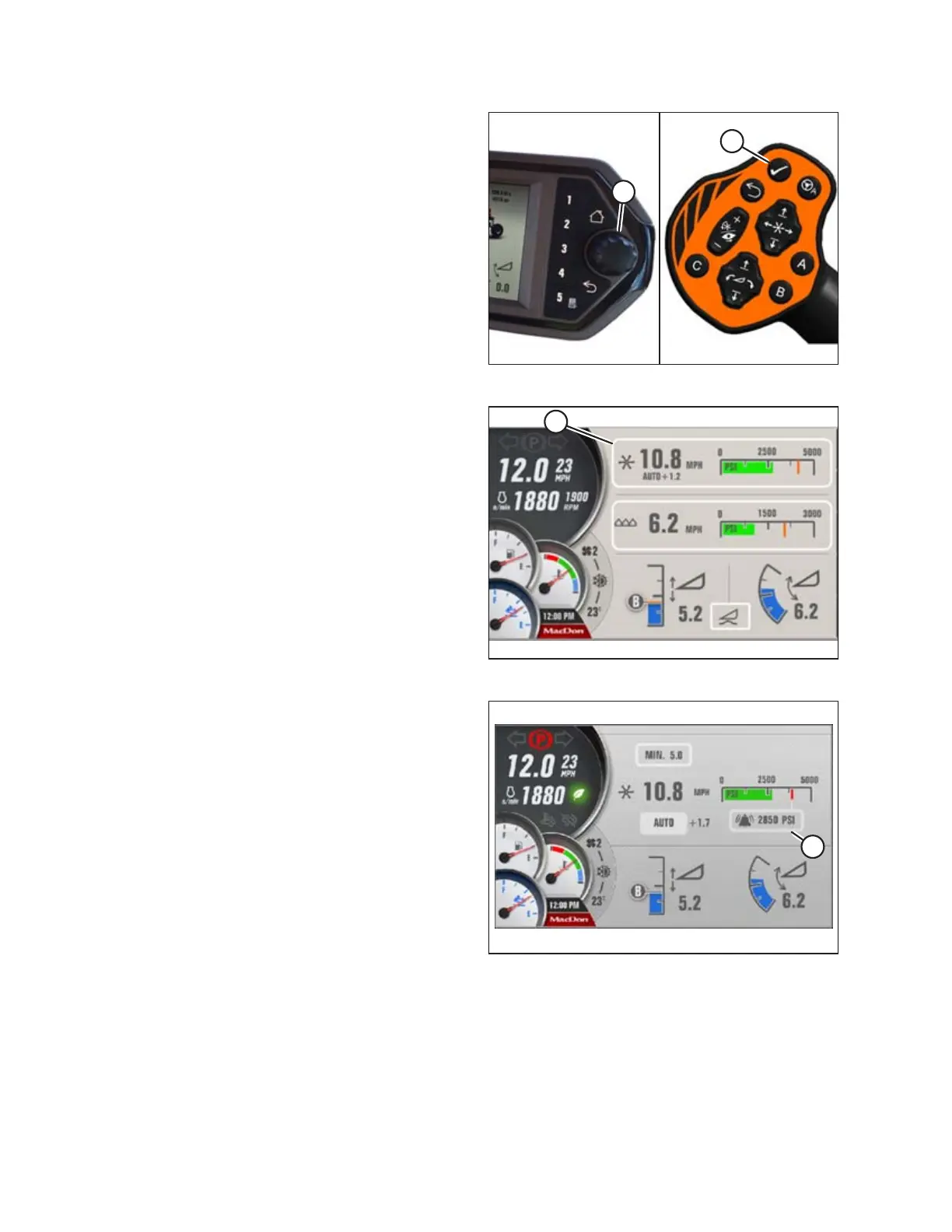

Figure 4.264: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the Harvest Performance
Tracker (HPT) or the SELECT button (B) on the ground speed
lever (GSL) to display the QuickMenu system.
Figure 4.265: Header QuickMenu Screen
3. Turn knob to scroll to REEL setting (A) on QuickMenu, and
press knob to select it. The next screen opens.
Figure 4.266: Setting Reel Alarm Pressure
4. Turn scroll knob to highlight reel pressure ALARM (A), and
press knob to select it.
5. Turn knob to change the ALARM set-point in window (A).
Scrolling past the highest setting turns off alarm. When the
alarm point is off, the digital value is replaced with three
dashed lines.
6. Adjust reel alarm pressure set-point to desired value, and
press knob to select it. Factory setting is 19,995 kpa
(2900 psi).
