Engine Cooling

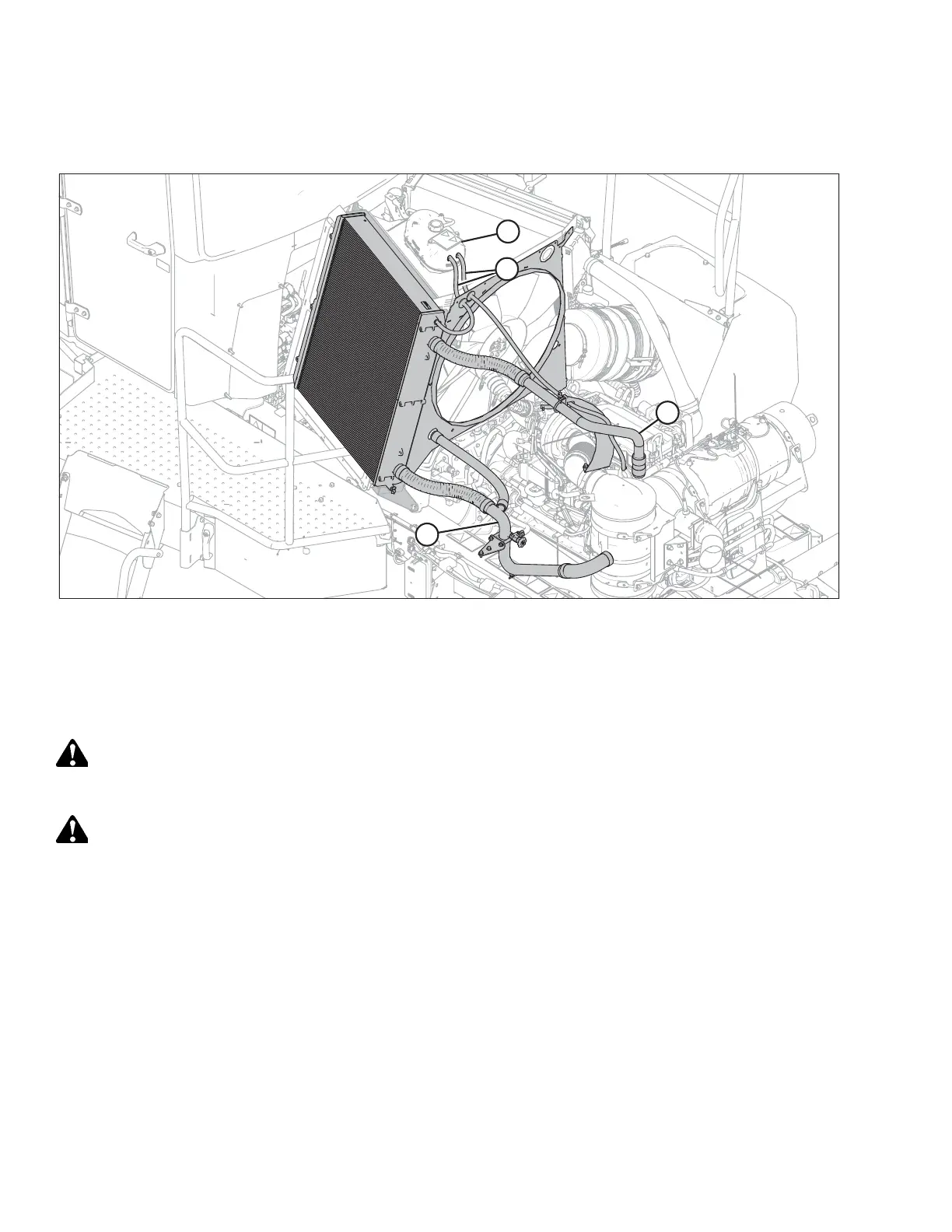

Figure 5.18: Engine Cooling
A - Pressurized Coolant Tank B - Engine Inlet Hose
C - Engine Outlet Hose D - Vent Hoses
Inspecting Pressurized Coolant Tank Cap
The pressurized coolant tank cap must fit tightly, and the cap gasket must be in good condition to maintain the 97–124 kPa
(14–18 psi) pressure in the cooling system.
CAUTION
To avoid personal injury from hot coolant, do NOT turn pressurized coolant tank cap until engine cools.
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Stop the engine and remove the key.
2. Open the hood. Refer to 5.3.1 Opening Hood, page 256.
