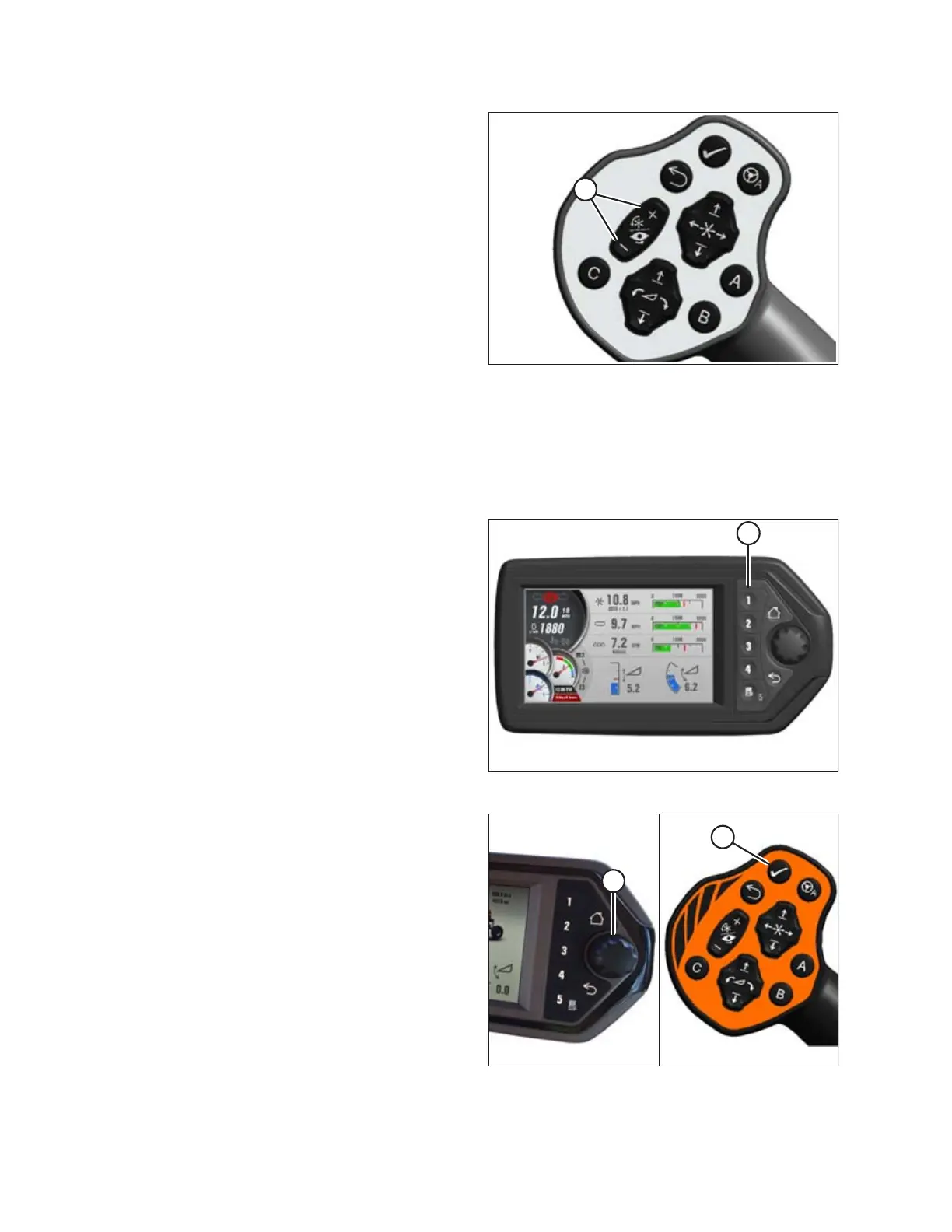

Figure 4.212: GSL
8. Use reel speed switches (A) on GSL to set reel speed. The
desired speed increases 1 rpm (0.1 mph or 0.2 km/h if in
mph/km/h) per momentary press, or continuous scrolling if
switch is pressed and held.
Adjusting Reel Alarm Pressure
Adjusting the reel alarm allows the operator to set an alert to inform them that the reel is operating at a desired pressure.
A lower setting will cause the alarm to be set off more often; a higher setting will allow the alarm to be set off less
frequently. This adjustment requires the header to be in operation.
1019554
A
Figure 4.213: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
draper RUN SCREEN 1.
1019523
A
B
Figure 4.214: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the Harvest Performance
Tracker (HPT) or the SELECT button (B) on the ground speed
lever (GSL) to display the QuickMenu system.
