MacDon M1170 - Page 223

214733 207 Revision A
1019523
A
B

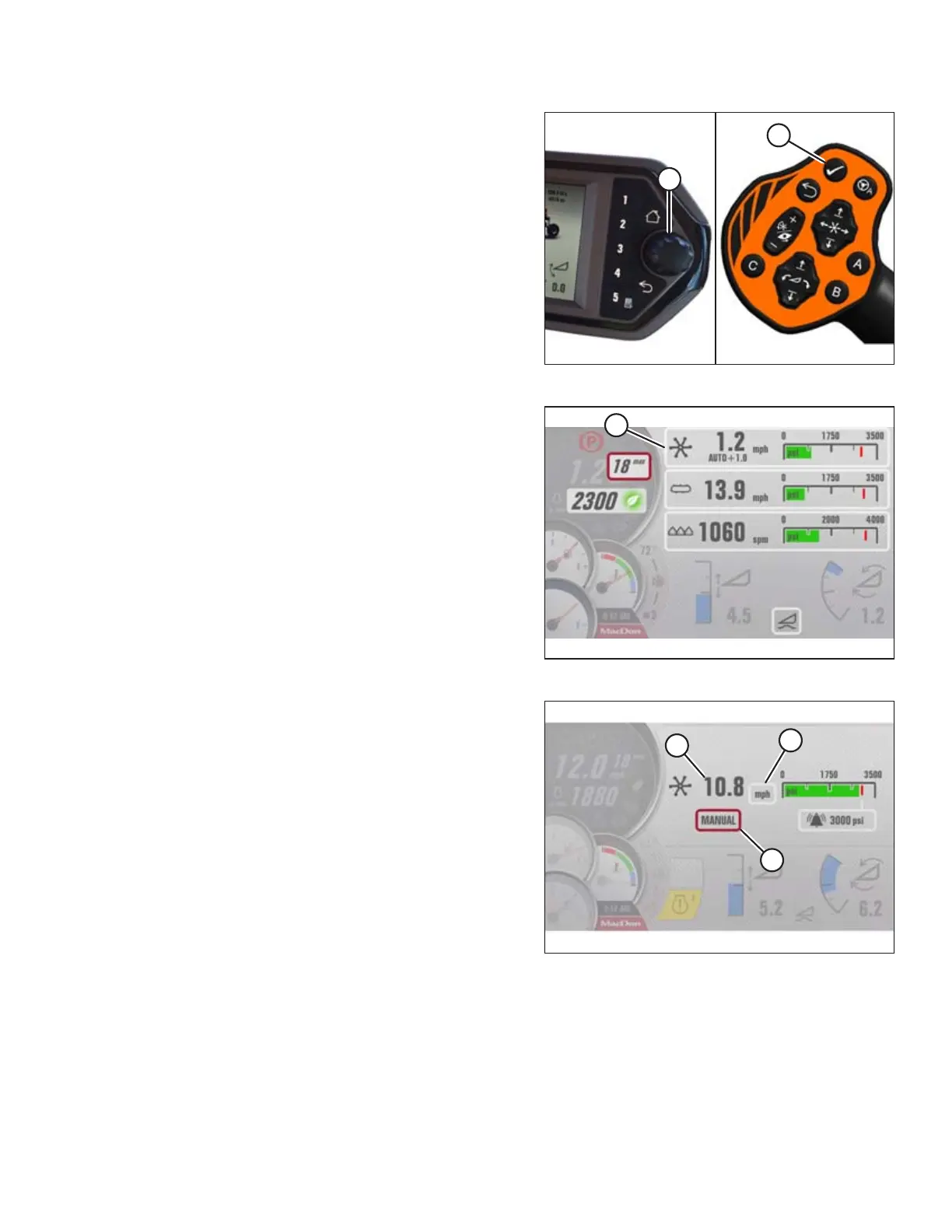

Figure 4.209: HPT and GSL
2. Press the scroll knob (A) or the SELECT button (B) on the
ground speed lever (GSL) to display the QUICKMENU PAGE.
1019542
A
Figure 4.210: Header QuickMenu
3. Turn knob to scroll to REEL setting (A) on QuickMenu, and
press knob to select it. The next page opens.
1023088
A
B
C
Figure 4.211: Draper Header Reel Page
4. Turn scroll knob to mode window (A) and select it.
5. Scroll in pop-up window to MANUAL and select it.
6. Scroll to units (B) and select desired unit (rpm, mph, or
km/h).
7. Proceed to next step to adjust reel speed (C).
OPERATION
