4.8.3 Auger Header Run Screens
Two auger header specific run screens are viewable when operating windrower with an auger header attached. The
screens are accessed by pressing the applicable soft keys on the Harvest Performance Tracker (HPT).
Run Screen 1

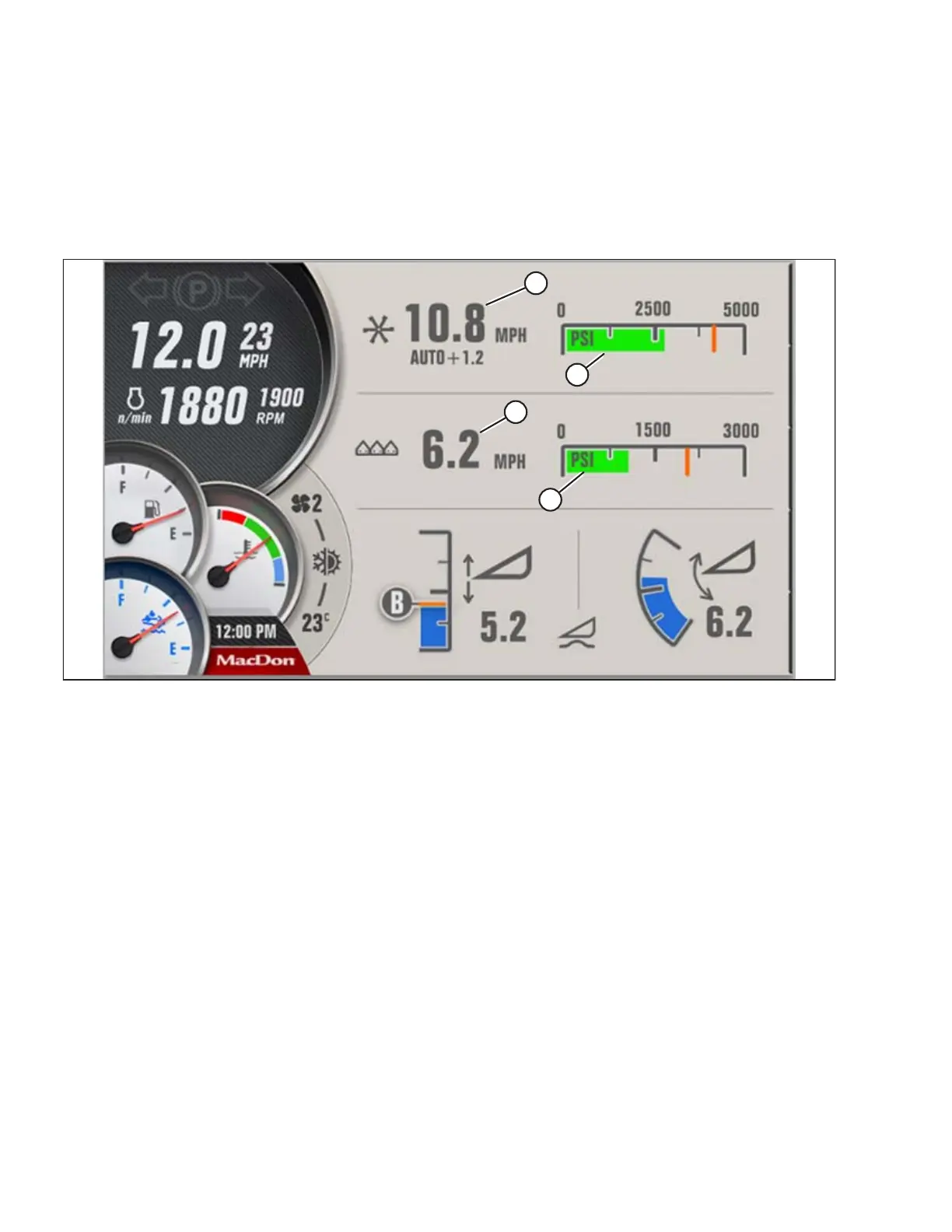

Figure 4.278: Run Screen 1 – Auger Header Display
1014964
A
B
C
D
A - Reel/Auger Speed B - Knife Speed C - Reel/Auger Pressure D - Knife Pressure
