MacDon M1170 - Connecting D1 X or D1 XL Series Hydraulics

214733 163 Revision A
Connecting D1X or D1XL Series Hydraulics
IMPORTANT:
To prevent contamination of the hydraulic system, use a clean rag to remove dirt and moisture from all (fixed and
movable) hydraulic couplers.
1016803
A
B
C

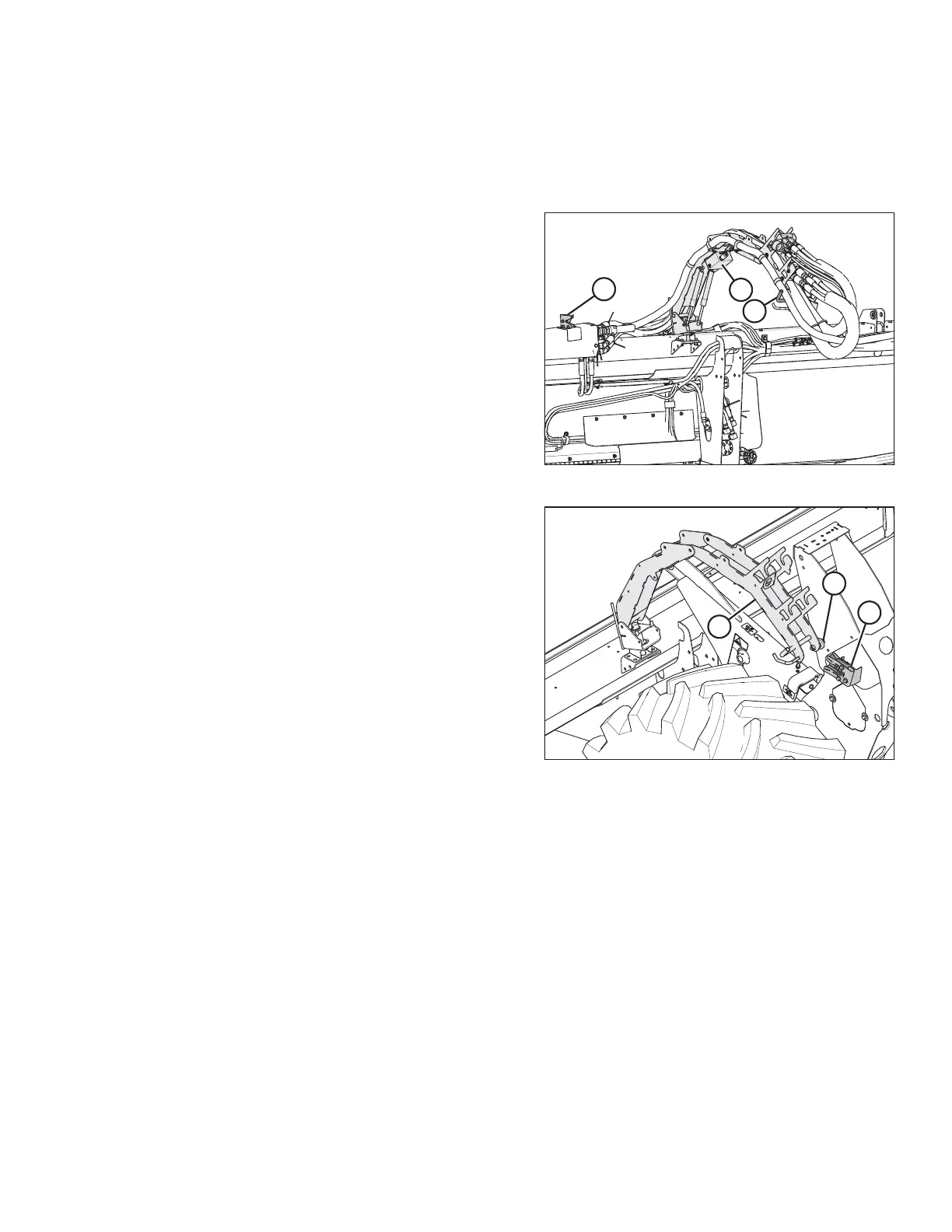

Figure 4.110: Hydraulic Hose Management Arm
1. Push link on latch (C) and pull handle (A) on hose
management arm (B) rearward to disengage arm
from latch.
2. Move arm (B) toward left cab-forward side of windrower.
1015686
A
C
B
Figure 4.111: Hydraulic Hose Management Arm
3. Connect hydraulic hose management arm (A) to windrower
by securing the ball joint (B) on arm into the latch
support (C) on windrower leg.
4. Open left cab-forward side platform. Refer to 5.4.1 Opening
Platform, page 258.
OPERATION
