214733 162 Revision A

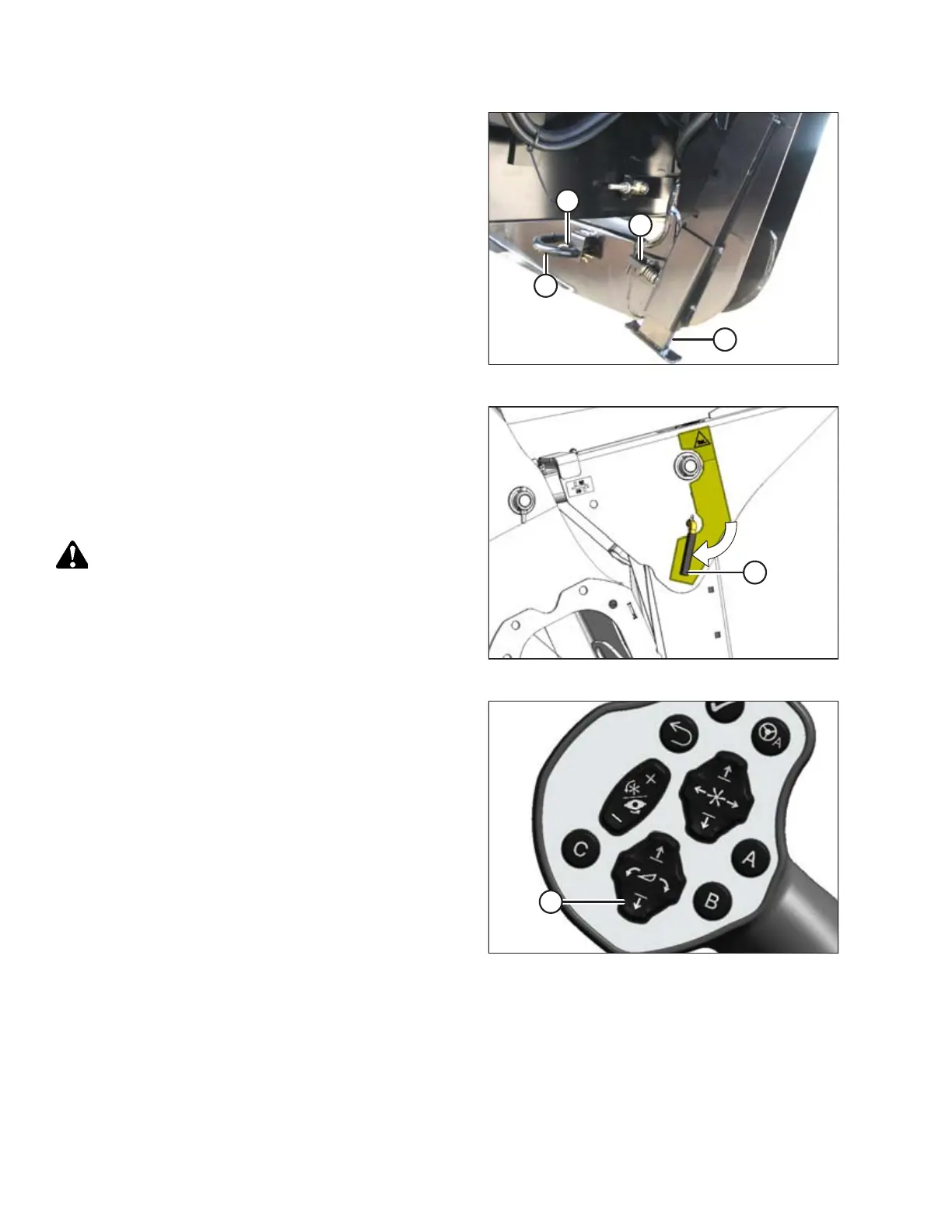

Figure 4.107: Header Leg
15. Install pin (B) through the header leg (engaging U-bracket in
draper header support) on both sides and secure with a
hairpin (A).
16. Raise header stand (D) to storage position by pulling spring
pin (C) and lifting stand into uppermost position. Release
spring pin.
Figure 4.108: Cylinder Safety Prop
17. Disengage safety prop by turning lever (A) downward to
raise safety prop until lever locks into vertical position.
NOTE:
If safety prop will not disengage, raise header slightly.
18. Repeat for opposite side.
CAUTION
Check to be sure all bystanders have cleared the area.
Figure 4.109: GSL
19. Start engine and press HEADER DOWN switch (A) on GSL to
fully lower header.
OPERATION
