214733 378 Revision A
5.15.7 Accessing Circuit Breakers and Fuses
Most circuit breakers and fuses are located inside a fuse box mounted on the left (cab-forward) side of the frame, behind
the platform and inside the battery cover.
NOTE:
The circuit breakers automatically reset. Fuses are the plastic blade type.
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.

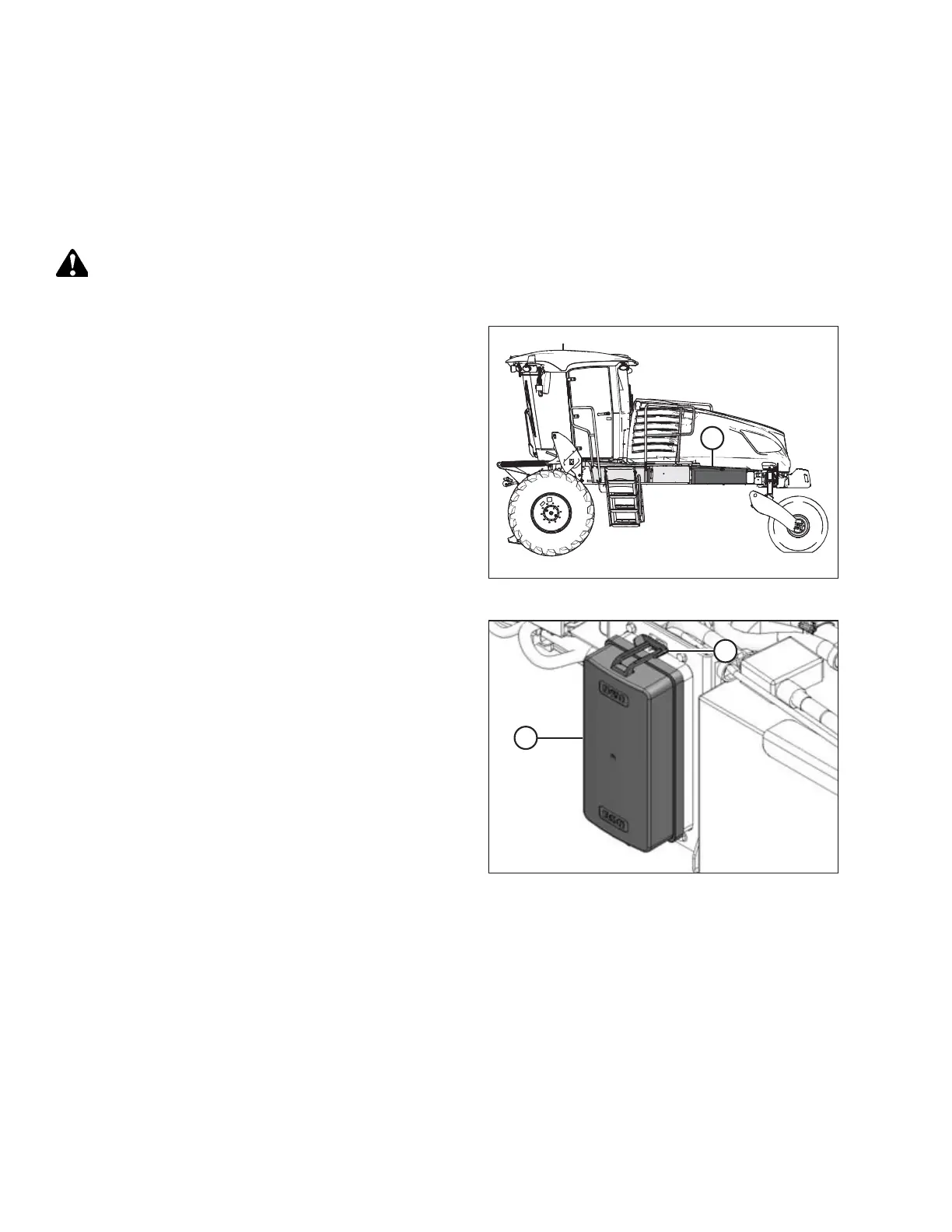

Figure 5.196: Fuse Box Location
1. Stop engine and remove the key from the ignition.
2. Open the battery cover (A) to access the fuse box. Refer to
Opening Battery Cover, page 343.
Figure 5.197: Fuse Box Cover
3. Lift latch (A) at top of fuse box cover (B) to disengage tab,
and then lower cover.
4. Check and replace fuses as required. Refer to Checking and
Replacing Fuses, page 379.
5. Position cover (B) onto fuse panel, ensuring that hooks at
bottom of cover have engaged fuse panel.
6. Push latch (A) to engage tab at top of fuse box.
7. Close battery cover and move platform to working position.
Refer to 5.4.2 Closing Platform, page 258.
MAINTENANCE AND SERVICING
