214733 133 Revision A
Run Screen 4 – Cooling Data

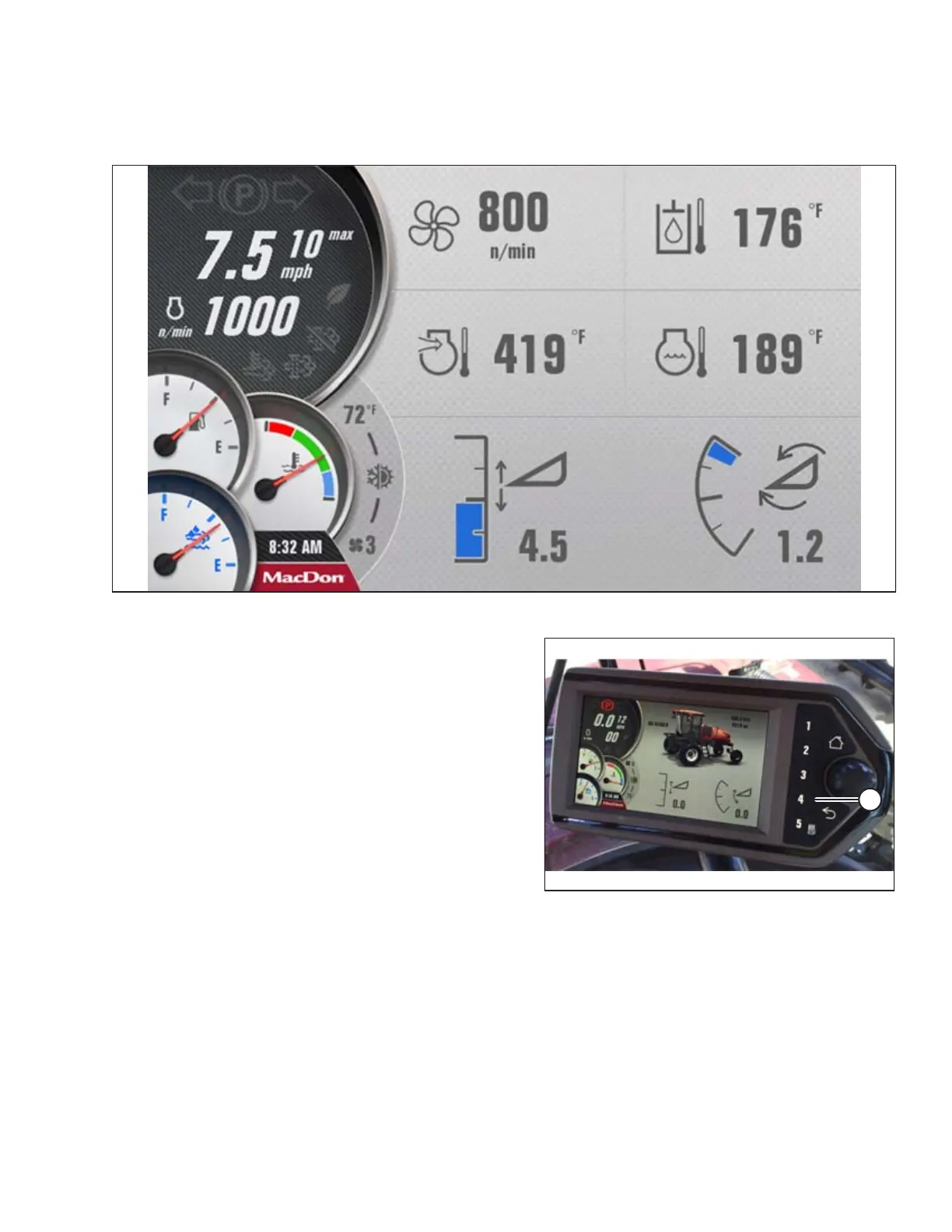

Figure 4.44: Run Screen 4 – Cooling Data
To display the windrower’s cooling data:
Figure 4.45: HPT Display
1. Press soft key 4 (A) on the Harvest Performance
Tracker (HPT) to open the COOLING DATA display.
NOTE:
Soft keys 1–5 also function as buttons within menus.
NOTE:
The engine fan speed will increase/decrease, depending on
cooling requirements. The fan speed icon will flash in
unison with the icon of the parameter that is controlling
the fan.
NOTE:
The engine fan will automatically reverse on a set time
interval, or when one of the system temperatures gets high
enough. No operator input is required to reverse the fan.
OPERATION
