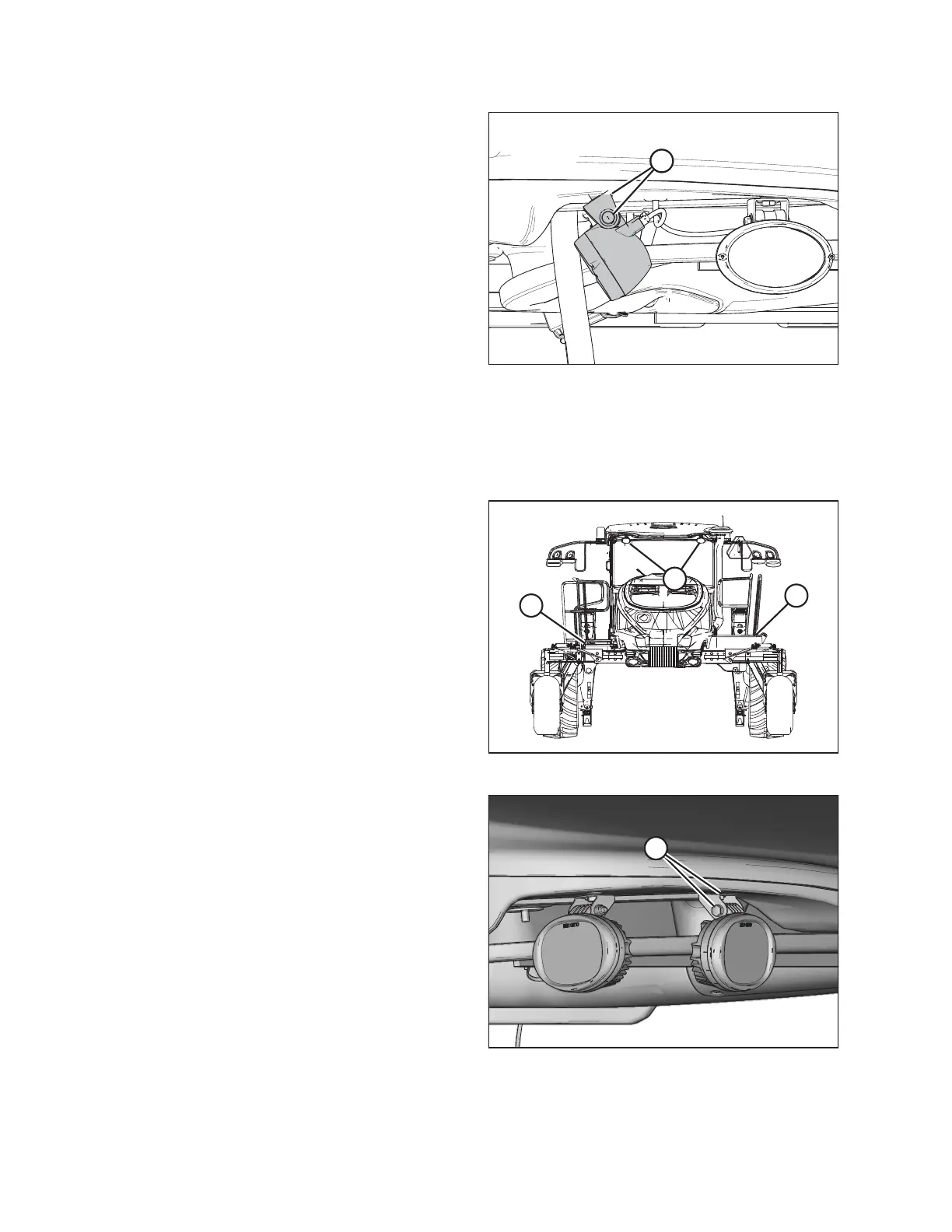

Figure 5.173: Left Rear Roof Work Light – Right
Opposite
2. Adjust light by hand. Loosen or tighten bolts (A) if
necessary.
Adjusting Rear Swath Lights
Adjust rear swath lights to best suit Operator preference.
1015894
A
B
B
A
Figure 5.174: Rear Swath Lights
1. Stand on left or right platform (B) to access rear swath
lights (A).
1015892
BA
Figure 5.175: Left Rear Swath Light – Right Opposite
2. Adjust light position using bolts (A).
