MacDon M1170 - Setting Knife Speed

214733 217 Revision A
Setting Knife Speed
Knife speed is displayed in strokes per minute (spm).
CAUTION
Check to be sure all bystanders have cleared the area.
1019554
A

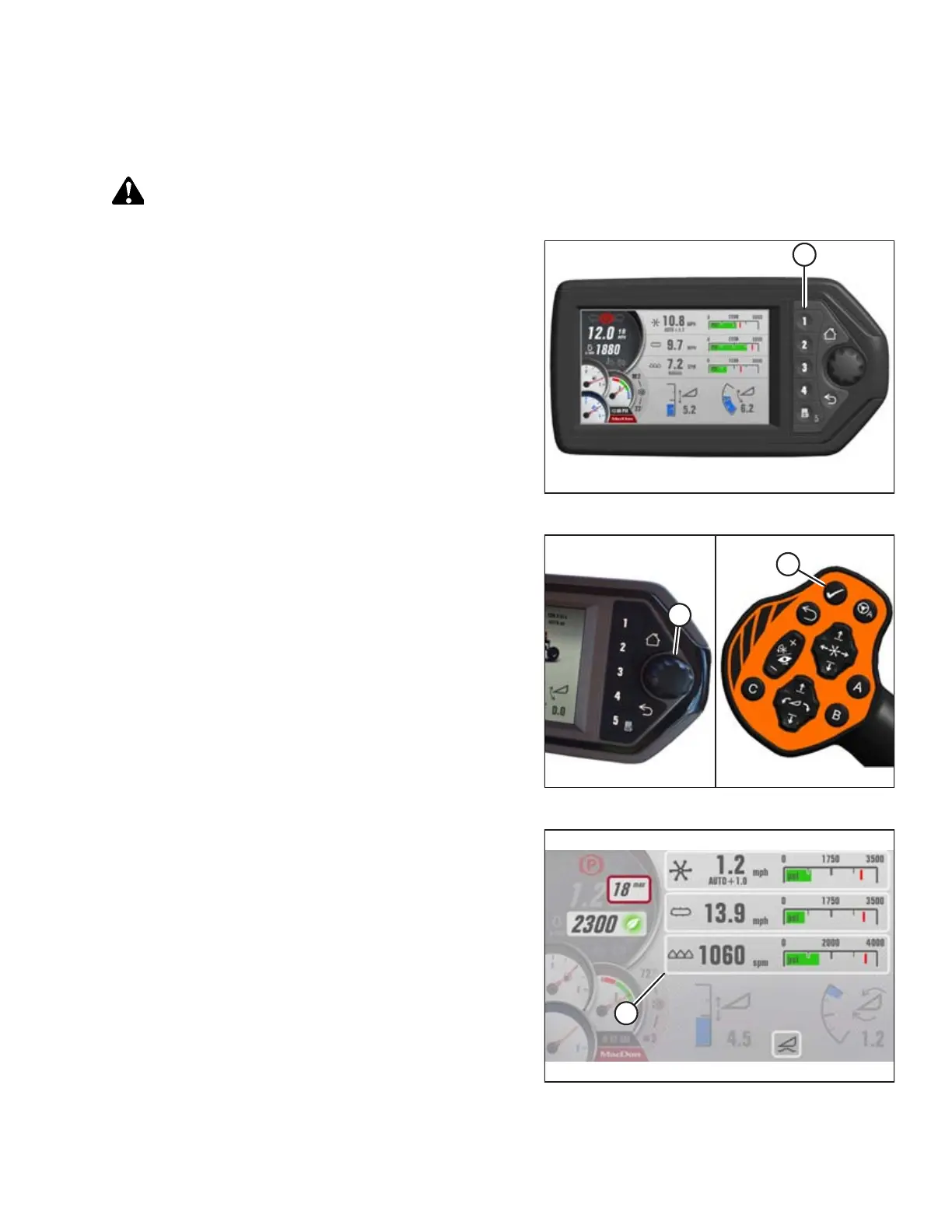

Figure 4.232: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
draper RUN SCREEN 1.
1014578
A
B
Figure 4.233: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the HPT or the SELECT
button (B) on the ground speed lever (GSL) to display the
QuickMenu page.
1019621
A
Figure 4.234: Draper Header QuickMenu
3. Scroll to the KNIFE setting (A) on the QuickMenu page, and
select it.
