Fuse Panel and Relay Module Decals

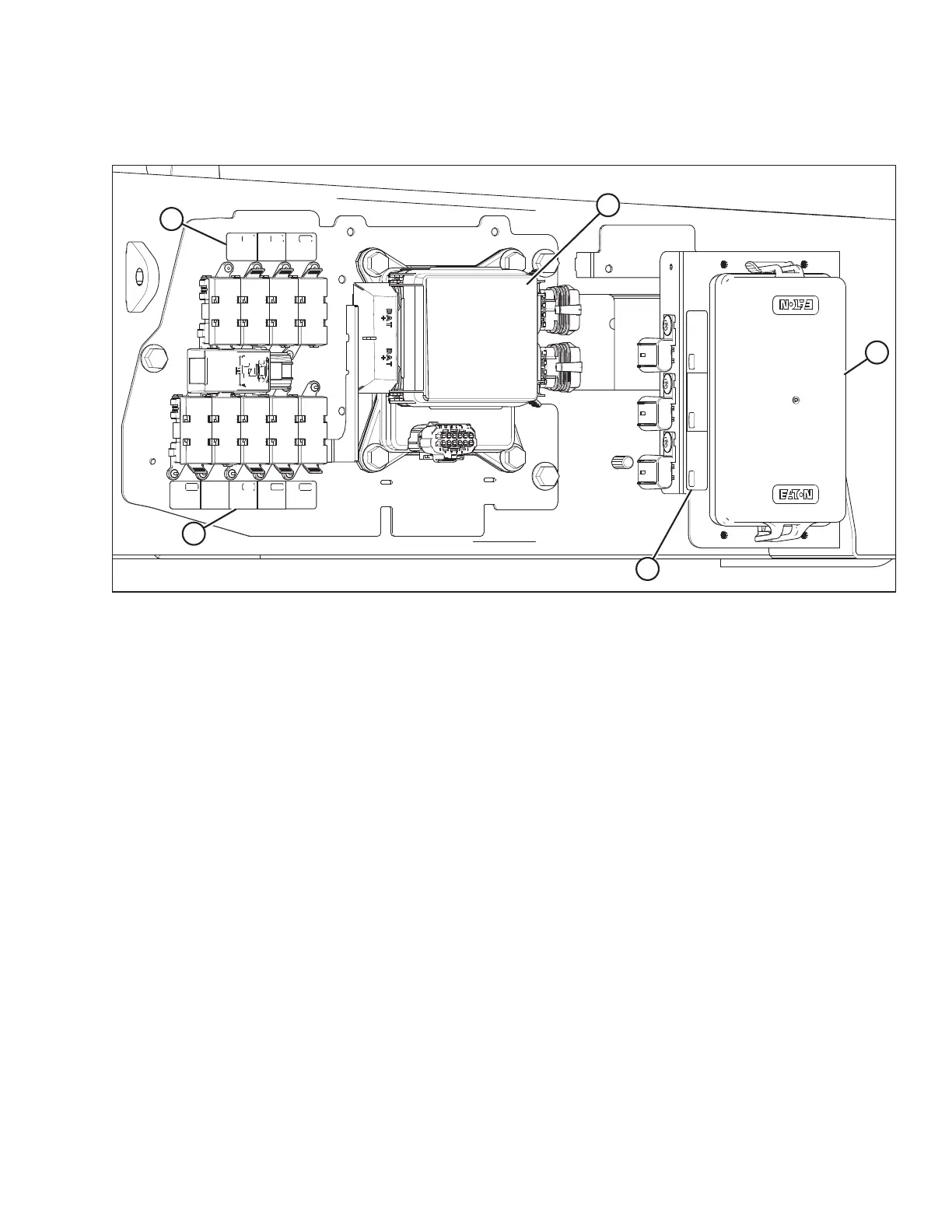

Figure 5.200: Left Rail Fuse Decal Locations
1020669
A
B
C
D
E
A - Main Fuse Panel Decal (MD #208594) (Located inside Fuse Cover) (Group A)
B - Chassis Relay Module Fuse Decal (MD #207816) (Located inside Fuse Cover) (Group B)
C - Lower AMI Group Fuse Decal (MD #291378) (Group D)
D - Upper AMI Group Fuse Decal (MD #207818) (Group D)
E - ATO Group Fuse Decal (MD #291465) (Group C)
