MacDon M1170 - Replacing the Cabin Dome Light Assembly

214733 376 Revision A
Replacing the Cabin Dome Light Assembly
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Stop the engine and remove the key.
1015621
A
B

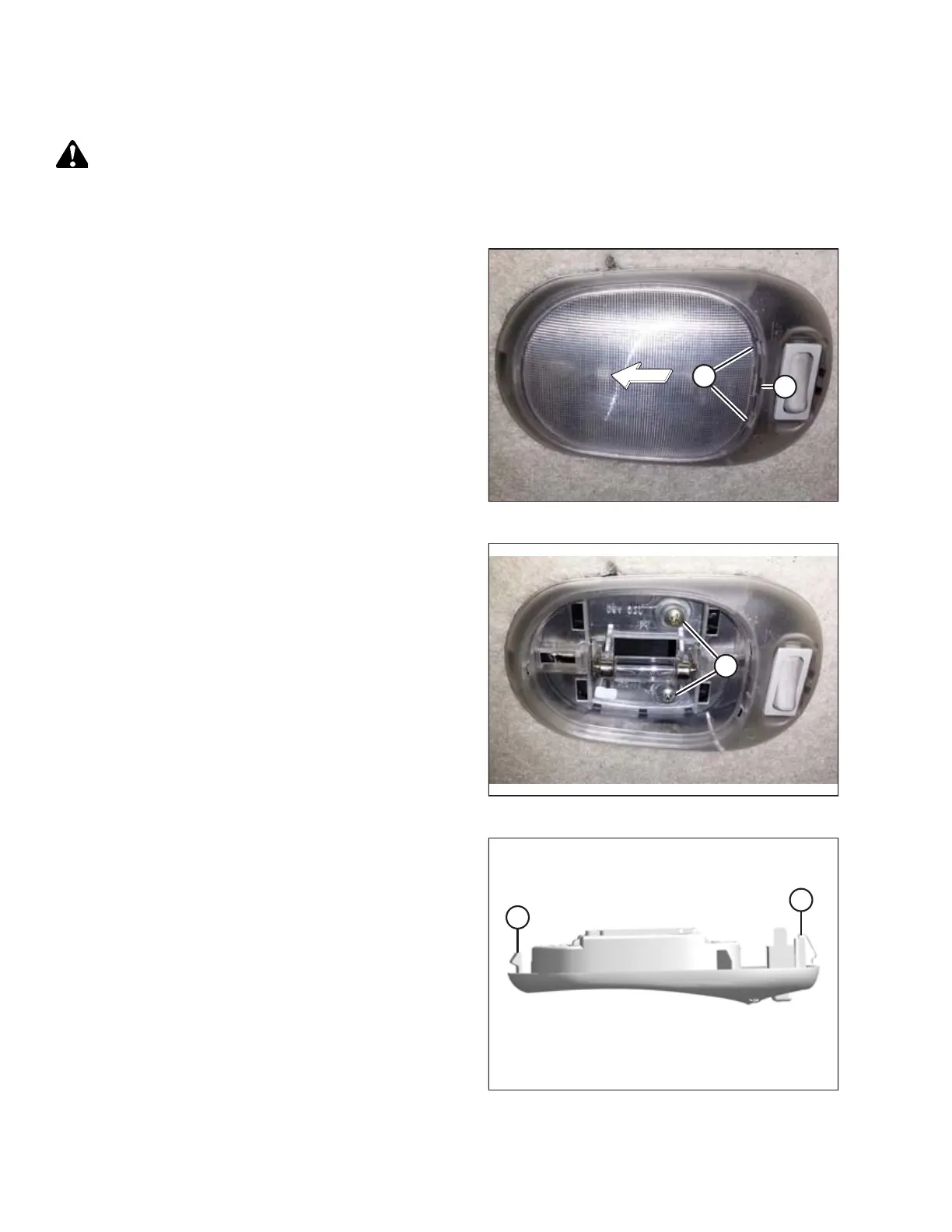

Figure 5.191: Cabin Dome Light
2. Insert a slotted screwdriver (or similar prying tool) into
slot (A). Gently pry the lens cover until retaining tabs (B)
are free of the dome light bezel.
3. Remove lens cover.
1015624
A
Figure 5.192: Cabin Dome Light with Cover Removed
4. Remove two screws (A) from dome light bezel.
1015610
A
B
Figure 5.193: Cabin Dome Light Assembly
5. Carefully insert a slotted screwdriver (or similar prying tool)
between roof liner and dome light assembly on the side of
the light with the ON/OFF switch.
6. Gently depress retaining clip (A), and swing dome light
assembly downwards to disengage retaining tab (B).
7. Disconnect the old dome light assembly from the wiring
harness.
8. Connect the new dome light (MD #201707) to the
wiring harness.
9. Engage retaining tab (B), and swing dome light assembly
upwards until retaining clip (A) snaps into place and secures
assembly.
MAINTENANCE AND SERVICING
