MacDon M1170 - F1 to F4 Function Buttons

214733 104 Revision A
1018974
A
B
J
C
D
E
F
G
H
K

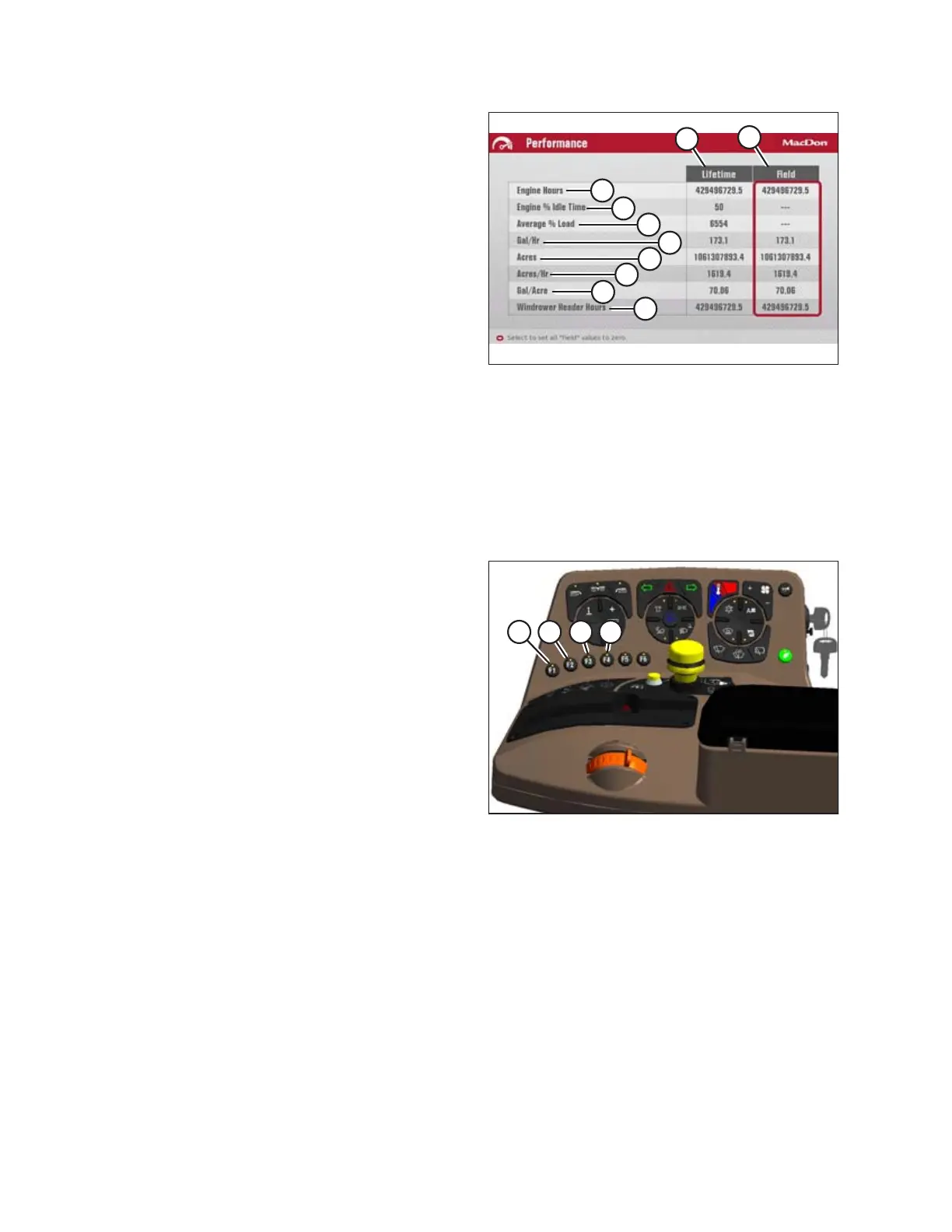

Figure 3.130: Performance Information Menu
The performance information menu displays two columns: one
column displays the accumulated data over the machine’s
lifetime (A) and is not resettable, the other displays the data
accumulated per field (B) and is resettable.
The performance information menu displays the following
information:
• Engine hours (C)
• Engine % idle time (D)
• Average % load (E)
• Gal/Hr (F)
• Acres (G)
• Acres/Gal (H)
• Gal/Acre (J)
• Windrower header hours (K)
NOTE:
To reset all of the field values to zero, use the scroll knob to highlight the FIELD column (B) and press the SELECT button.
3.17.8 F1 to F4 Function Buttons
1014762
A
B
C
D
Figure 3.131: Operator’s Console Shortcut Buttons
The following functions have been assigned to the F1–F4
function buttons on the operator’s console:
• F1 (A) – Float menu
• F2 (B) – One-Touch-Return
• F3 (C) – Windrower settings
• F4 (D) – Header settings
Press a function button to override the existing screen and
display the function.
Press the function button again or press the Back button to
return to the previous screen.
Press the Home button to return to the run screen.
NOTE:
F5 and F6 buttons are not assigned to any functions.
OPERATOR’S STATION
