MacDon M1170 - Installing Fresh Air Intake Filter

214733 300 Revision A
Installing Fresh Air Intake Filter
Refer to 5.1.4 Filter Part Numbers, page 251 for part number.
1015293
A

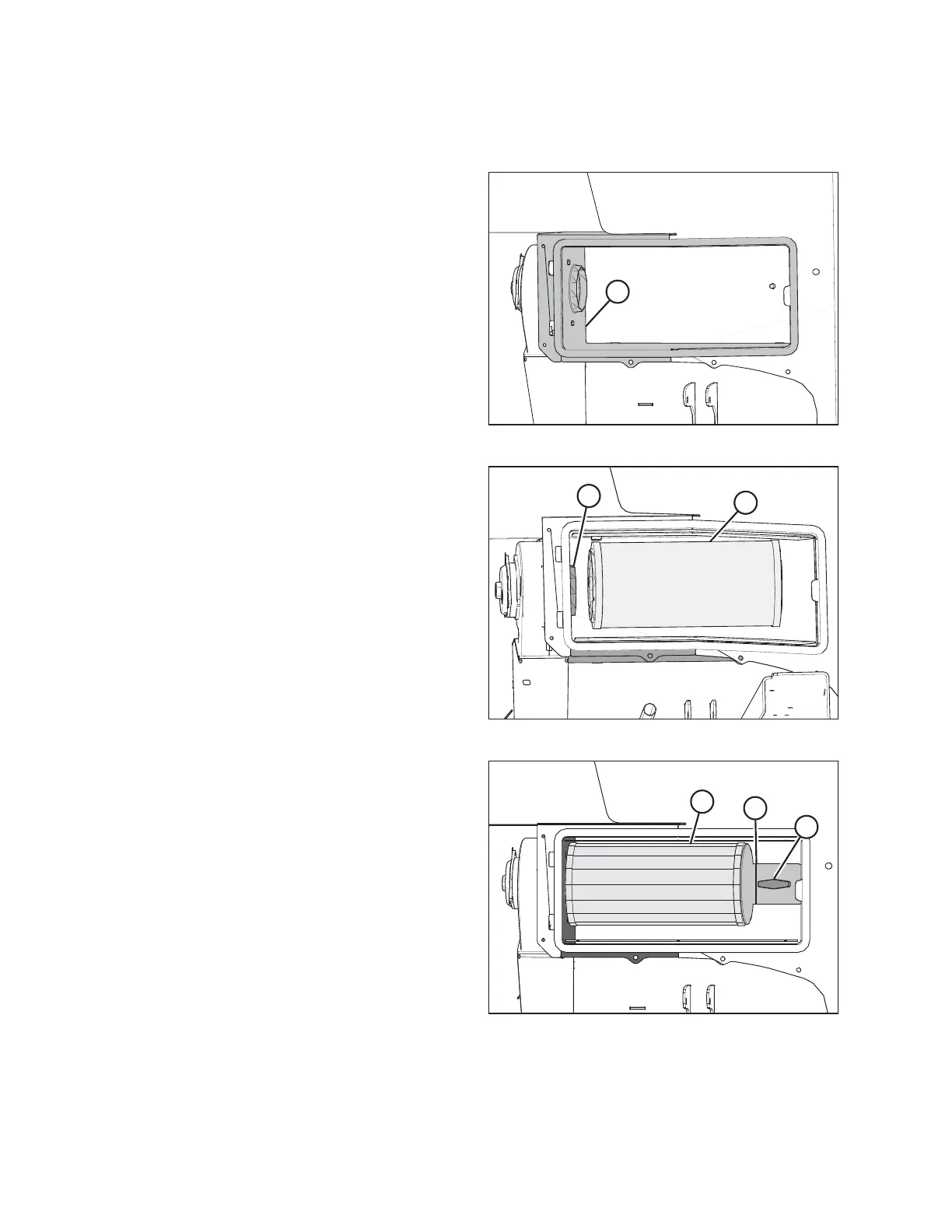

Figure 5.64: Fresh Air Intake Box
1. Clean interior of fresh air intake box (A).
1015294
A
B
Figure 5.65: Fresh Air Intake Filter
2. Install air filter (A) onto fresh air box panel (B).
1022381
A
B
C
Figure 5.66: Fresh Air Intake Filter
3. Secure air filter (C) with retainer (B).
4. Install knob (A), and turn clockwise to tighten.
