MacDon M1170 - Adjusting Knife Speed Alarm

214733 221 Revision A
Adjusting Knife Speed Alarm
The knife speed alarm informs the operator when knife speed is outside the desired range. A lower setting will cause the
alarm to be set off less often; a higher setting will cause the alarm to be set of more frequently. The header must be in
operation for this adjustment.
1019554
A

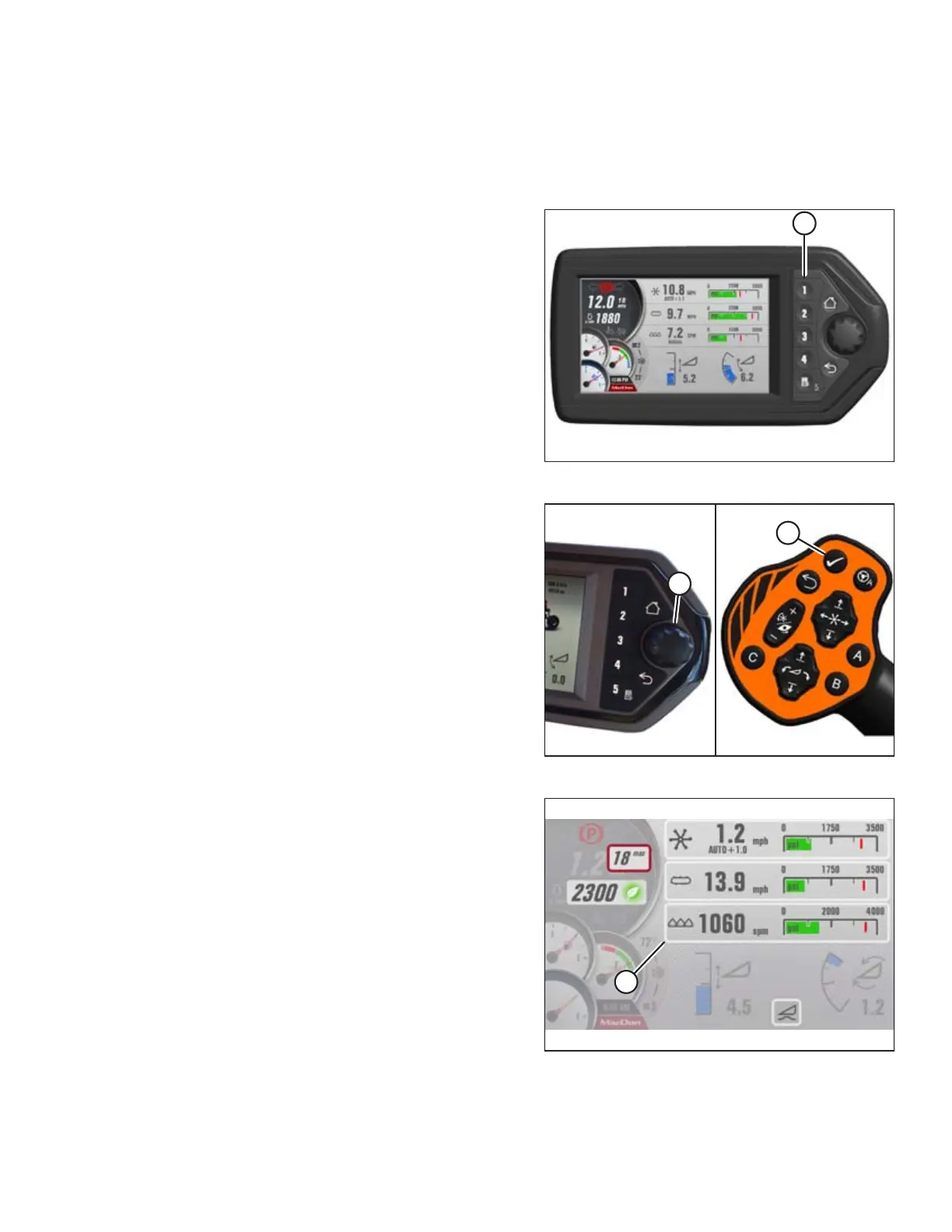

Figure 4.240: Header Run Screen 1
1. If RUN SCREEN 1 is not already displayed, press soft key
1 (A) on the Harvest Performance Tracker (HPT) to display
draper RUN SCREEN 1.
1014578
A
B
Figure 4.241: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the HPT or the SELECT
button (B) on the ground speed lever (GSL) to display the
QuickMenu system.
1019621
A
Figure 4.242: Draper Header QuickMenu
3. Turn knob to scroll to the KNIFE setting (A) on the
QuickMenu page, and press knob to select it.
