5.5.2 Twin-Flow Cooling System

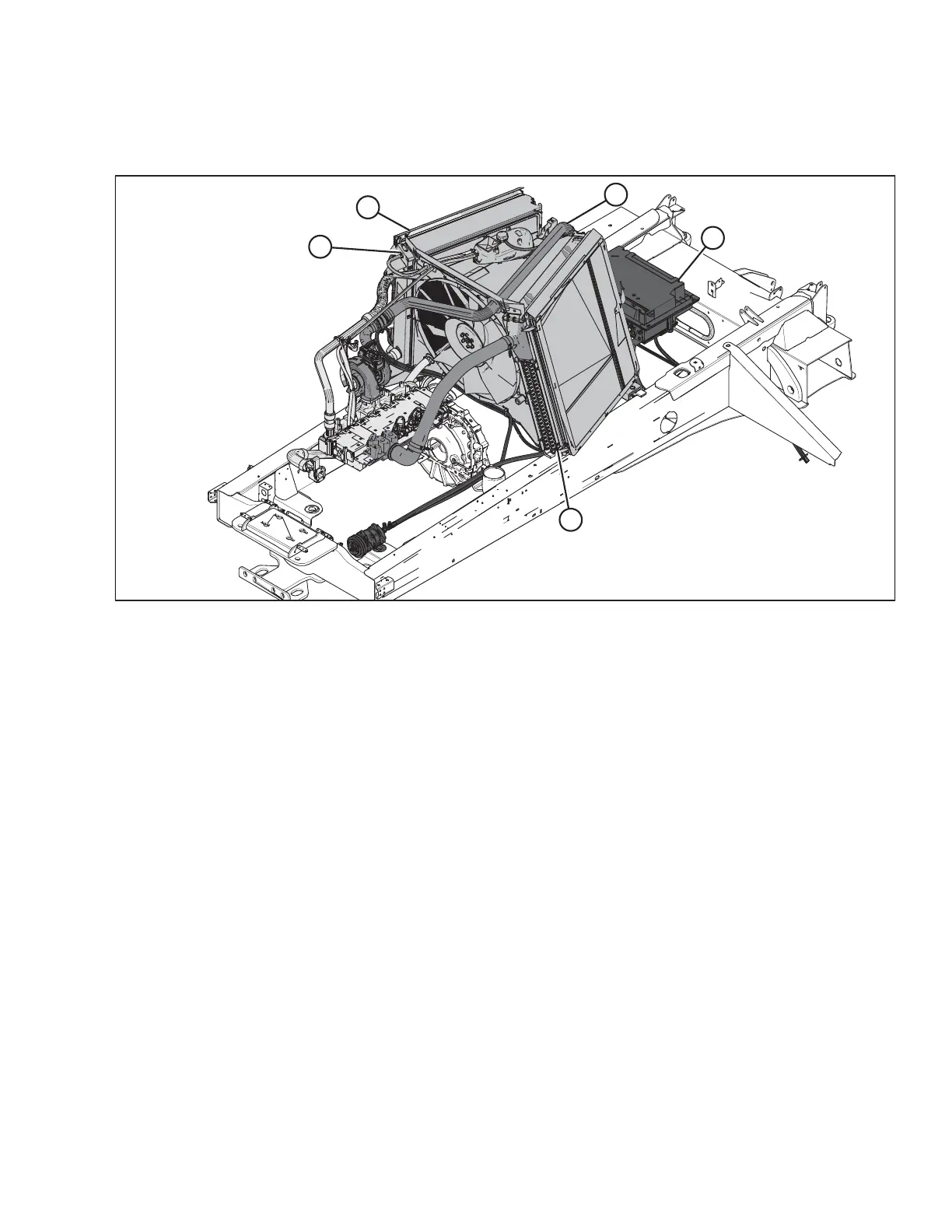

Figure 5.17: Twin-Flow Cooling Systems
A - Air Conditioning Condenser B - Charge Air Cooler C - Hydraulic Oil Cooler
D - Air Conditioning Box E - Engine Radiator
NOTE:
Anti-freeze is essential in any climate. It broadens the operating temperature range by lowering the coolant freezing point
and by raising its boiling point. Anti-freeze also contains rust inhibitors and other additives to prolong engine life.
IMPORTANT:
If anti-freeze strength is not adequate, do NOT drain cooling system to protect against freezing. System may not drain
completely, and damage from freezing could still result.
Refer to 5.1.3 Lubricants, Fluids, and System Capacities, page 249 for detailed information.
