214733 256 Revision A
5.3 Engine Compartment
CAUTION
• NEVER operate engine in a closed building. Proper ventilation is required to avoid exhaust gas hazards.
• Keep the engine clean. Straw and chaff on a hot engine are a fire hazard.
• NEVER use gasoline, naphtha, or any other volatile material for cleaning purposes. These materials are toxic and/or
flammable.
5.3.1 Opening Hood
WARNING
To avoid bodily injury or death from unexpected startup of the machine, always stop the engine and remove the key
from the ignition before leaving the operator’s seat for any reason.
1. Stop the engine and remove the key.

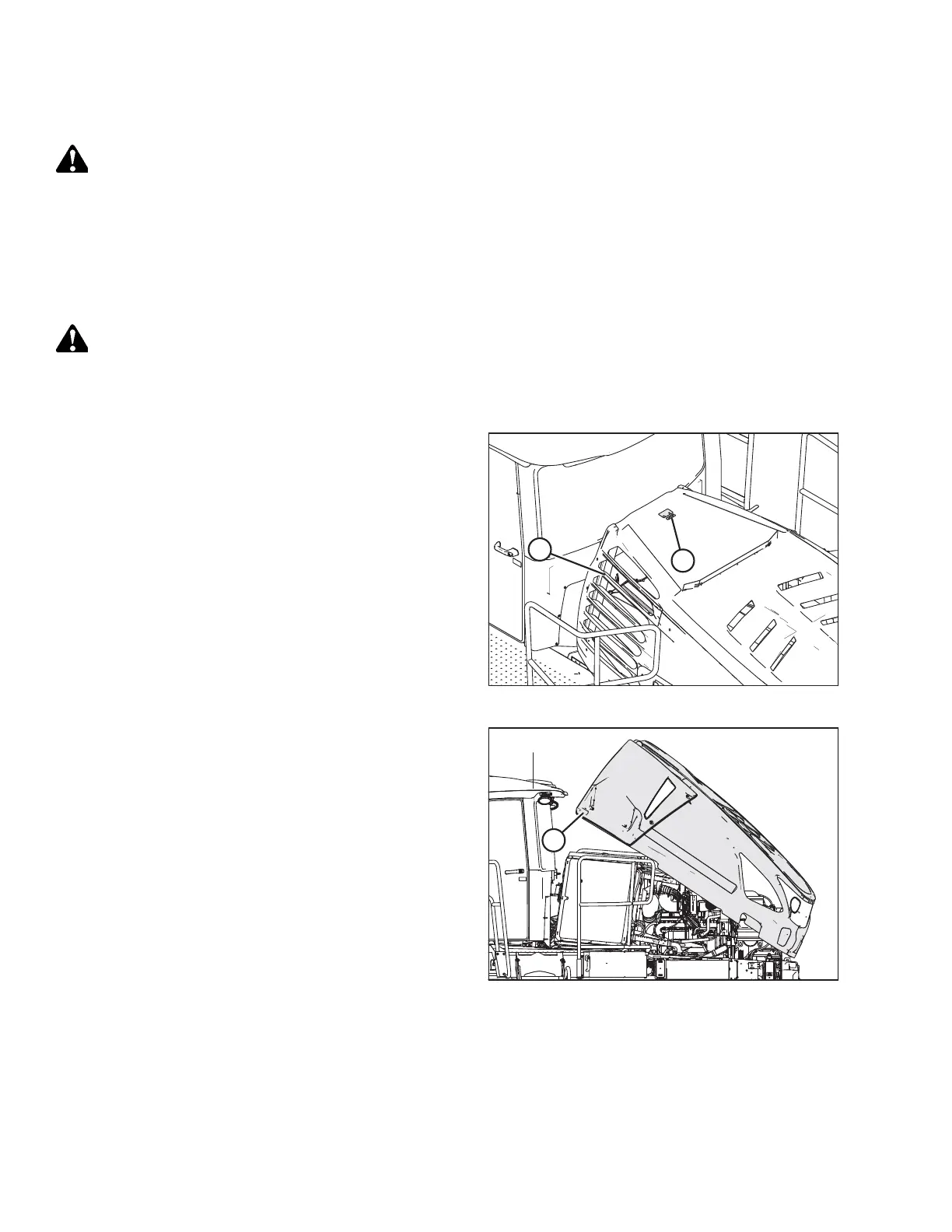

Figure 5.3: Hood
2. Move latch (A) towards right cab-forward side of the
windrower.
3. Grasp louver (B), and lift hood to open.
Figure 5.4: Hood with Optional High Debris Cooler
Intake Kit
NOTE:
If the optional High Debris Cooler Intake kit is installed, a
louver can still be used to open the hood.
MAINTENANCE AND SERVICING
