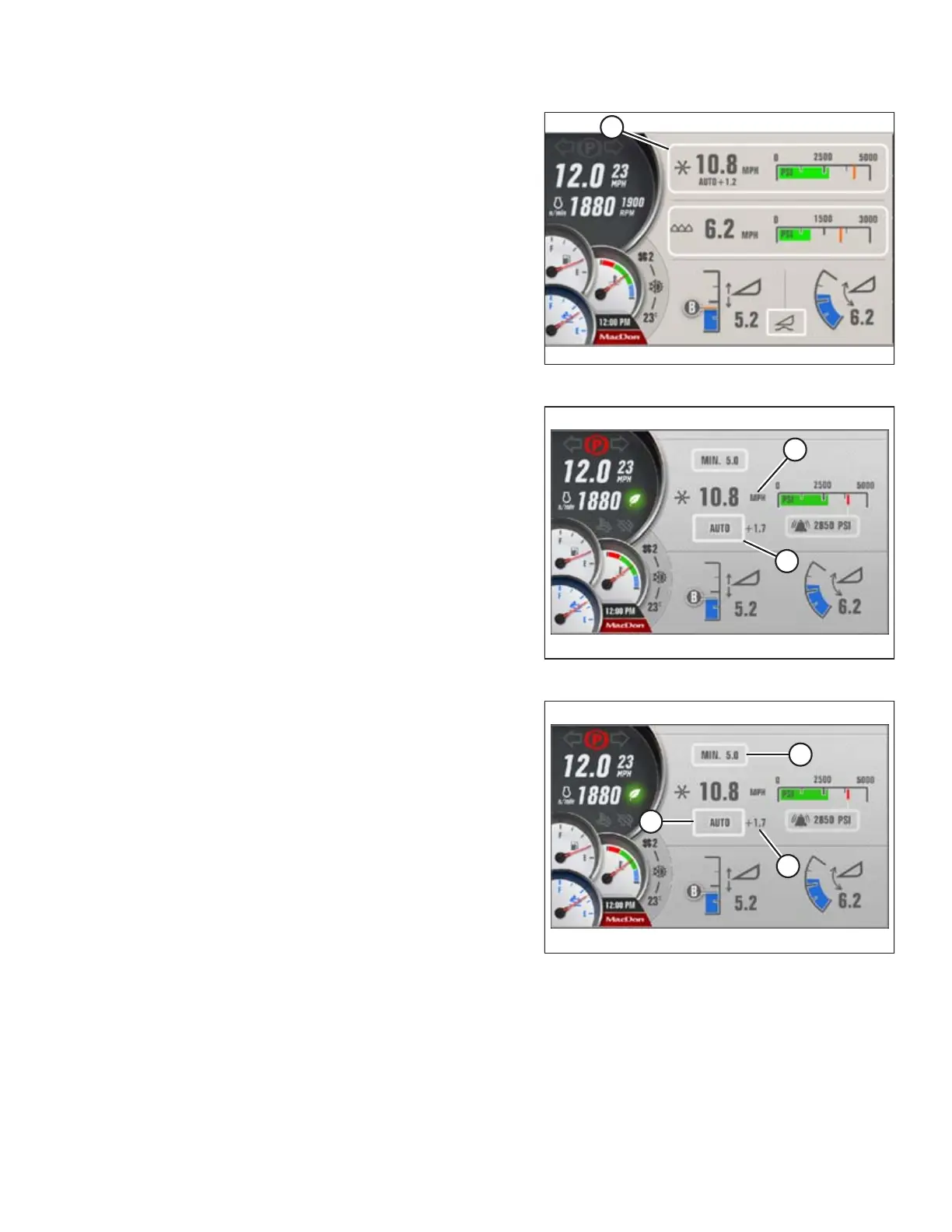

Figure 4.255: Header QuickMenu Screen
3. Turn knob to scroll to REEL setting (A) on QuickMenu, and
press knob to select it. The next page opens.
Figure 4.256: Draper Header Reel Screen
4. Scroll to mode window (A) and select it.
5. Scroll to AUTO in the pop-up window, and select it.
NOTE:
In AUTO mode, the speed is displayed in km/h or mph (B)
which cannot be changed.
Figure 4.257: Auger Header Reel Screen
6. Scroll to the MINIMUM REEL SPEED setting (A) and select it
(this setting is grayed out in manual mode).
7. Turn scroll knob to adjust minimum reel speed between
0–8 km/h (5 mph). Press knob to select desired setting.
8. Scroll to INDEX value (C) and select it.
9. Turn scroll knob to set index value. The index range is
+/- 8 km/h (5 mph) (zero, i.e. equal to ground speed, is the
default). Press knob to select desired setting.
NOTE:
The reel operates at reel minimum speed when the ground
speed is less than the set minimum speed. Minimum reel
speed is displayed (A) and MIN will replace the AUTO
+1.7 (B).
