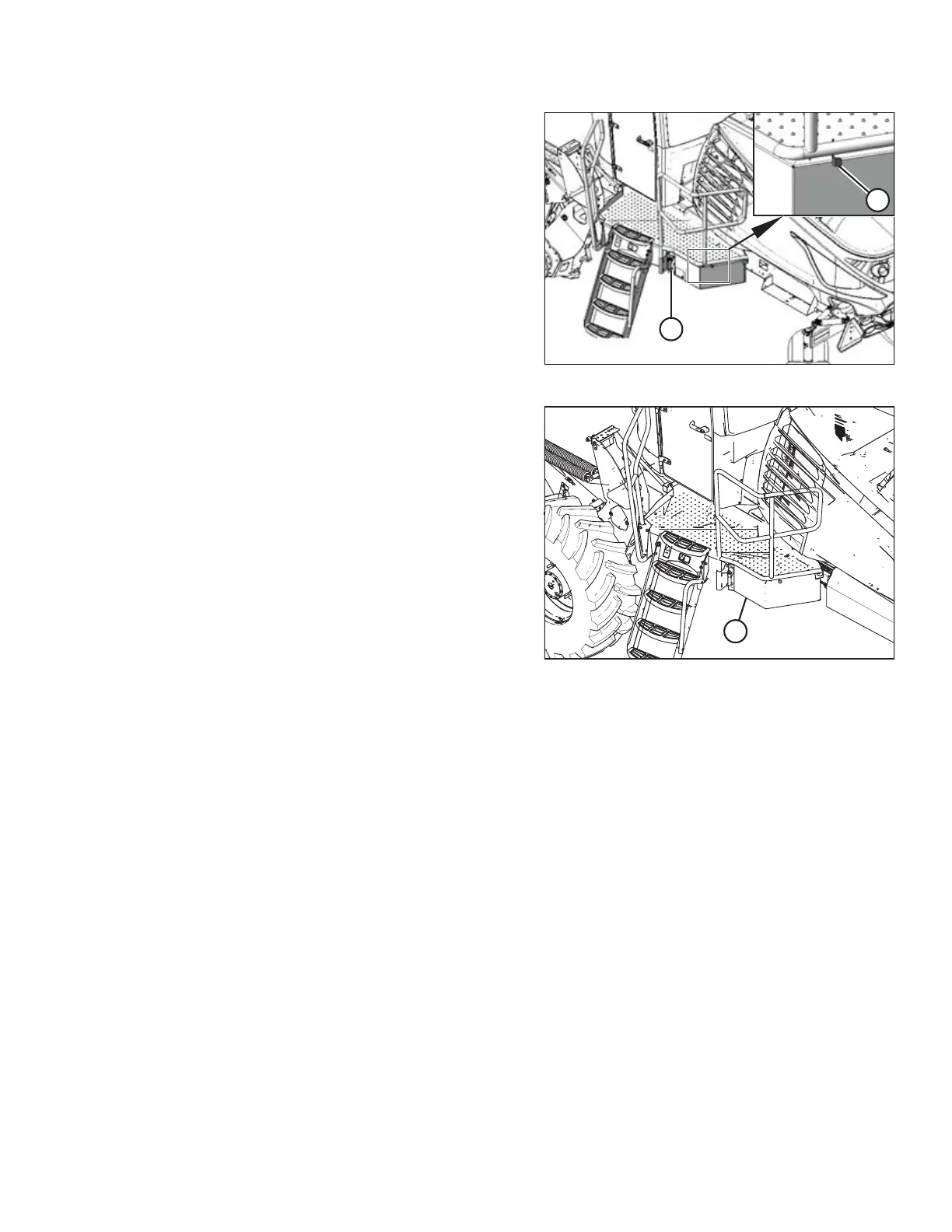

Figure 4.146: Left Cab-Forward Platform
7. Push latch (B) to unlock platform (A).
1012700
A
Figure 4.147: Closed Platform
8. Pull platform (A) towards the cab until it stops and latch
engages.
OPERATION
