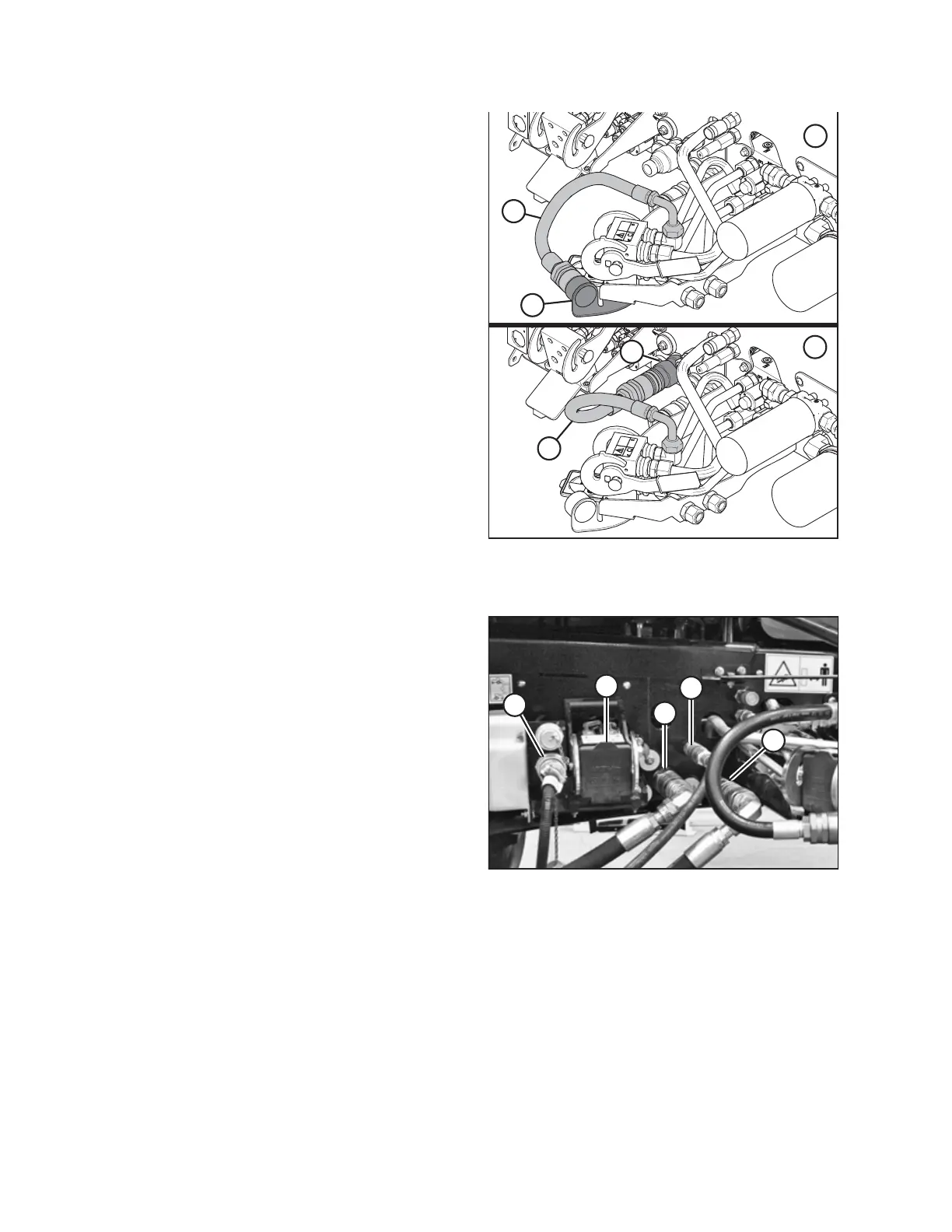

Figure 4.144: Knife Pressure Hose Positions
1 - Hose in Storage Position (Rotary Configuration)
2 - Hose to Knife Pressure Receptacle (Auger/Draper Configuration)
If switching from an auger/draper header to a rotary header:
5. Disconnect hose (A) from knife pressure receptacle (C) on
frame, and move to storage location (B).
Figure 4.145: Hydraulic and Electrical Connections
6. Attach couplers to receptacles on windrower as follows:
a. Connect pressure hose female coupler to
receptacle (A)
b. Connect return hose male coupler to receptacle (B)
c. Connect case drain hose coupler to receptacle (C)
d. Connect the electrical harness to receptacle (D)
NOTE:
The hydraulic hoses should have enough slack to pass by the
multicoupler (E) without coming into contact with it. This
will protect the hoses from rubbing against the multicoupler
and becoming damaged. You can increase slack in the hoses
by loosening and adjusting the hose holder on the front
windrower leg, and pulling the hoses backward toward the
windrower.
