MacDon M1170 - Page 195

214733 179 Revision A
1024892
A
B
C
D

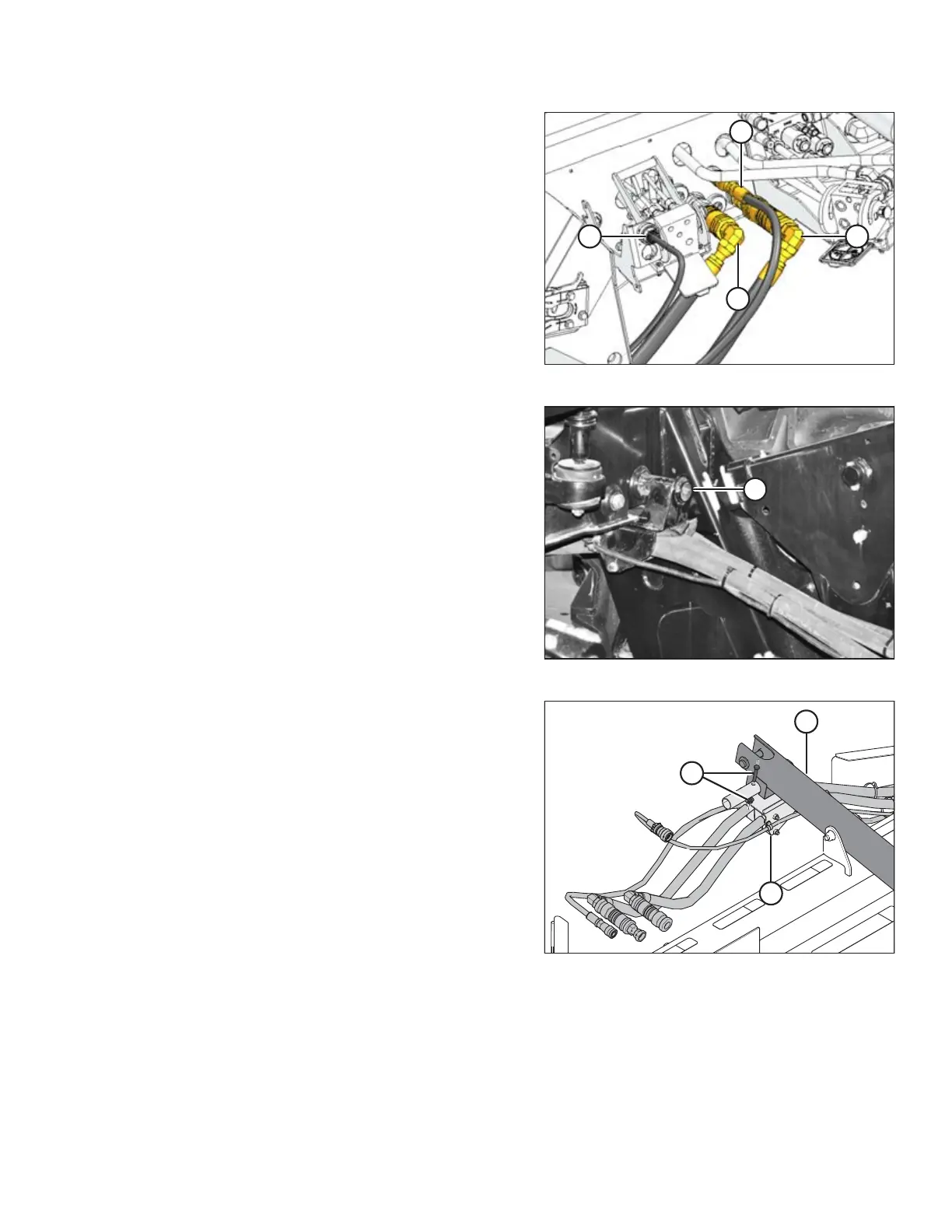

Figure 4.150: Header Drive Hydraulics
5. Disconnect electrical harness (A) and hydraulic hoses (B),
(C), and (D) from the windrower:
1019603
A
Figure 4.151: Hoses on Windrower
6. Remove hose support (A) and hose bundle from
windrower frame.
1021553
B
C
A
Figure 4.152: Hose Storage Position
7. Slide support (A) into center-link support (B) and secure
with hardware (C).
OPERATION
