MacDon M1170 - Page 196

214733 180 Revision A
1021550
B
C
A
B
A
A
C

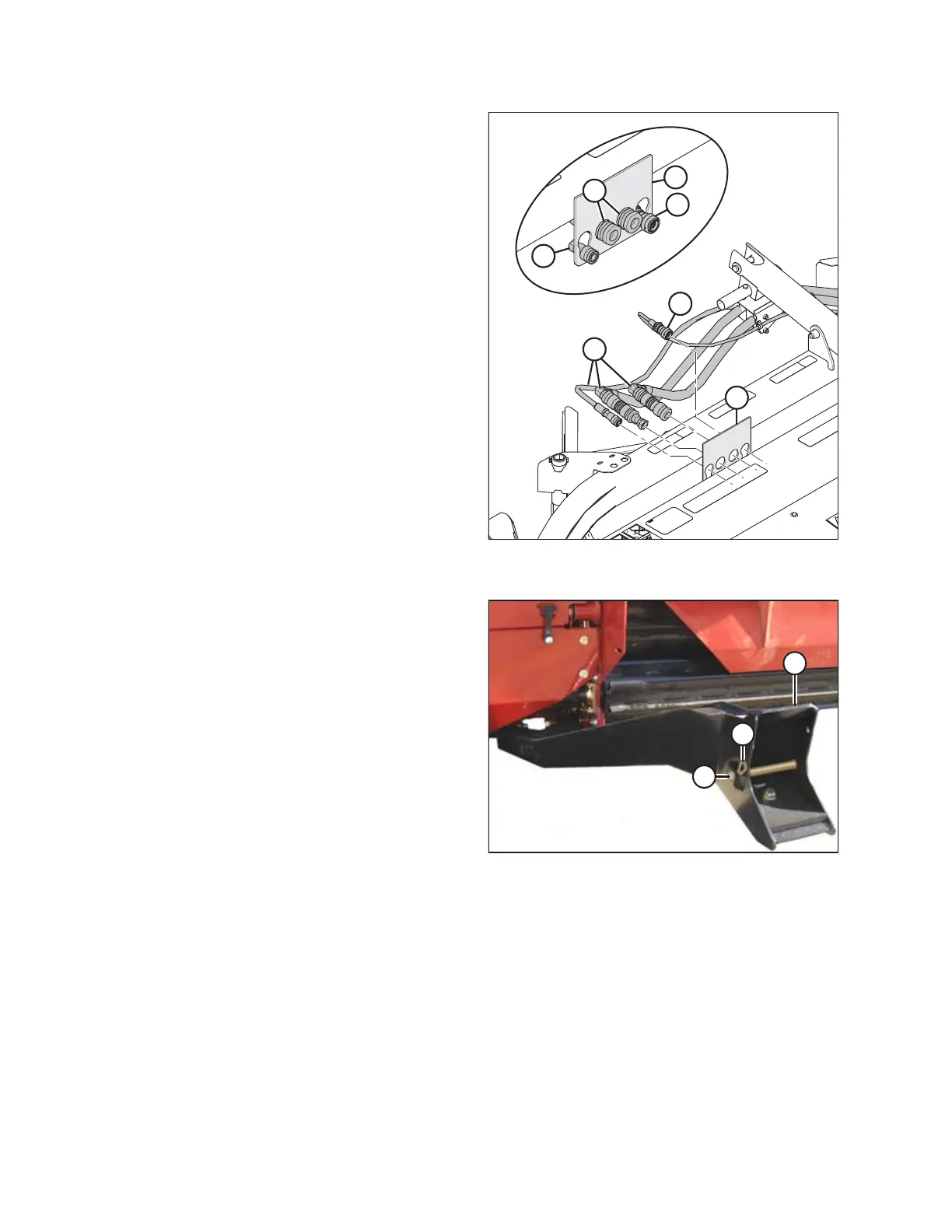

Figure 4.153: Hydraulic Storage Plate (Parts Removed
for Clarity)
8. Store hoses (A) and electrical harness (B) disconnected
from the windrower in Step 5, page 179 into storage
plate (C).
NOTE:
Install caps and plugs on open lines to prevent buildup of
dirt and debris while in storage.
1000812
A
B
C
Figure 4.154: Header Supports
9. Remove hairpin from clevis pin (A). Remove clevis pin from
header support (B) on both sides of header.
OPERATION
