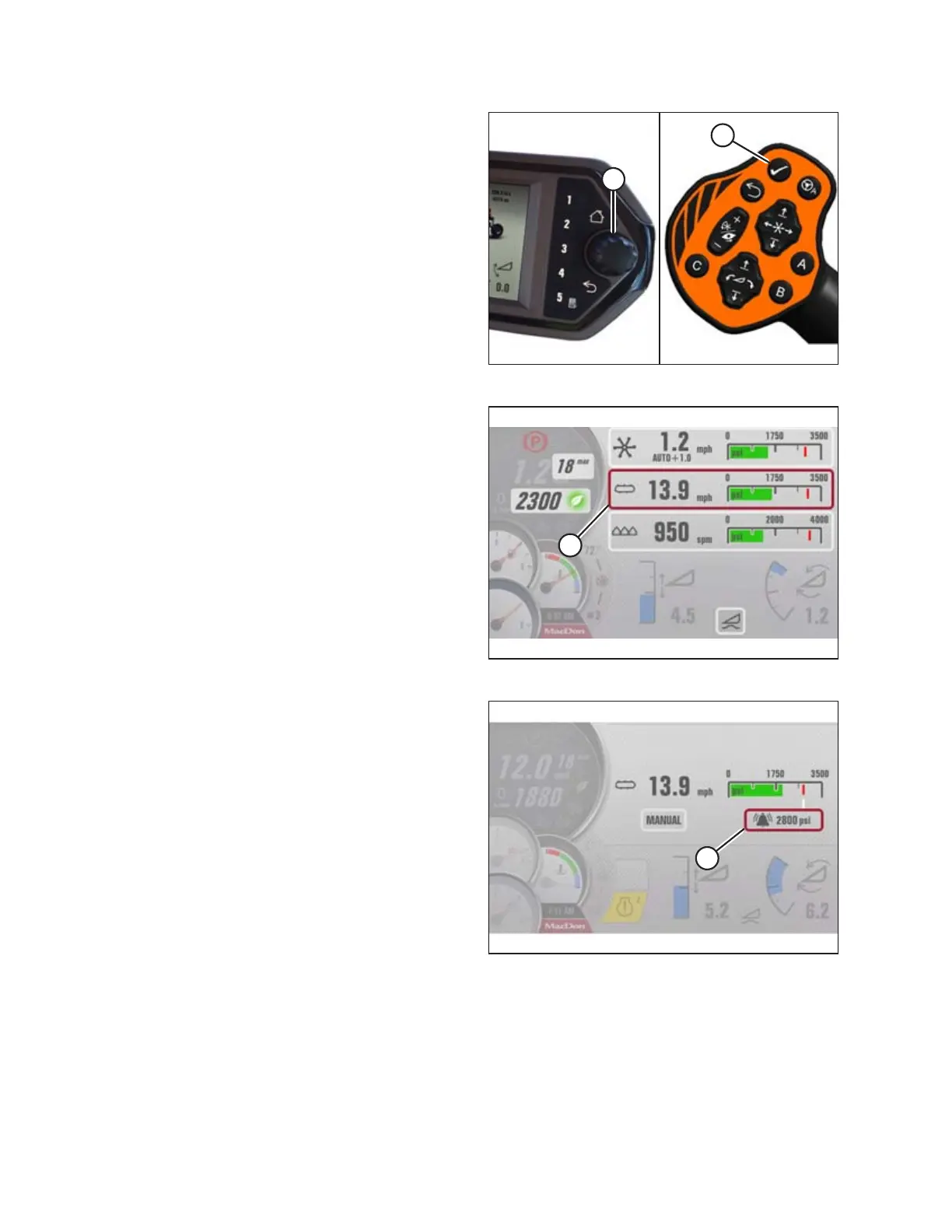

Figure 4.228: HPT Scroll Knob and GSL Select Button
2. Press the scroll knob (A) on the Harvest Performance
Tracker (HPT) or the SELECT button (B) on the ground speed
lever (GSL) to display the QuickMenu page.
1019597
A
Figure 4.229: Draper Header QuickMenu
3. Turn knob to scroll to DRAPER setting (A) on QuickMenu,
and press knob to select it. The next page opens.
1023089
A
Figure 4.230: Draper Header Draper Page
4. Scroll to the DEFAULT DRAPER ALARM PRESSURE (A), and
select it.
5. Change the alarm set-point by scrolling. Scrolling past the
highest setting turns off the alarm. When the alarm point is
off, the digital value is replaced with three dashed lines.
6. Adjust draper alarm pressure set-point to desired value,
and press knob to select it. Factory setting is 19,995 kpa
(2900 psi).
