MacDon M1170 - Page 51

214733 35 Revision A

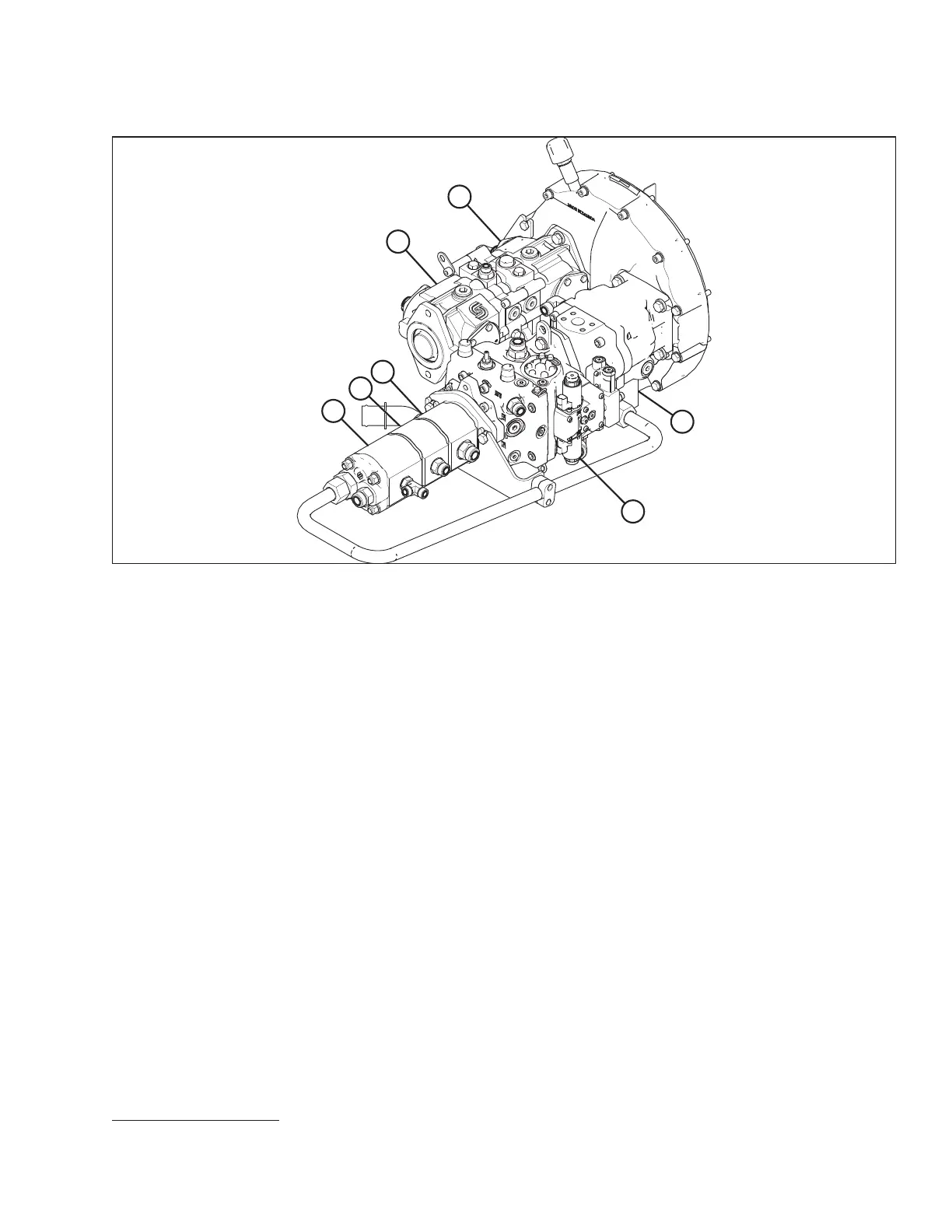

Figure 2.1: Pump Orientation
1021889
1
2
3
4
5
6
7
1 - Reel/Auger Drive Pump 2 - Draper Drive or Double Windrow (DWA) Drive
Option
3
3 - Charge Pressure Pump for Pumps 4, 5, 6, and 7
4 - Knife/Disc Drive (Closed Loop System) 5 - Fan Drive and Lift Functions (Open Loop System) 6 - Traction Drive Tandem Pump (Left Wheel)
7 - Traction Drive Tandem Pump (Right Wheel)
PRODUCT OVERVIEW
3. DWA is used only with auger or disc header only.
