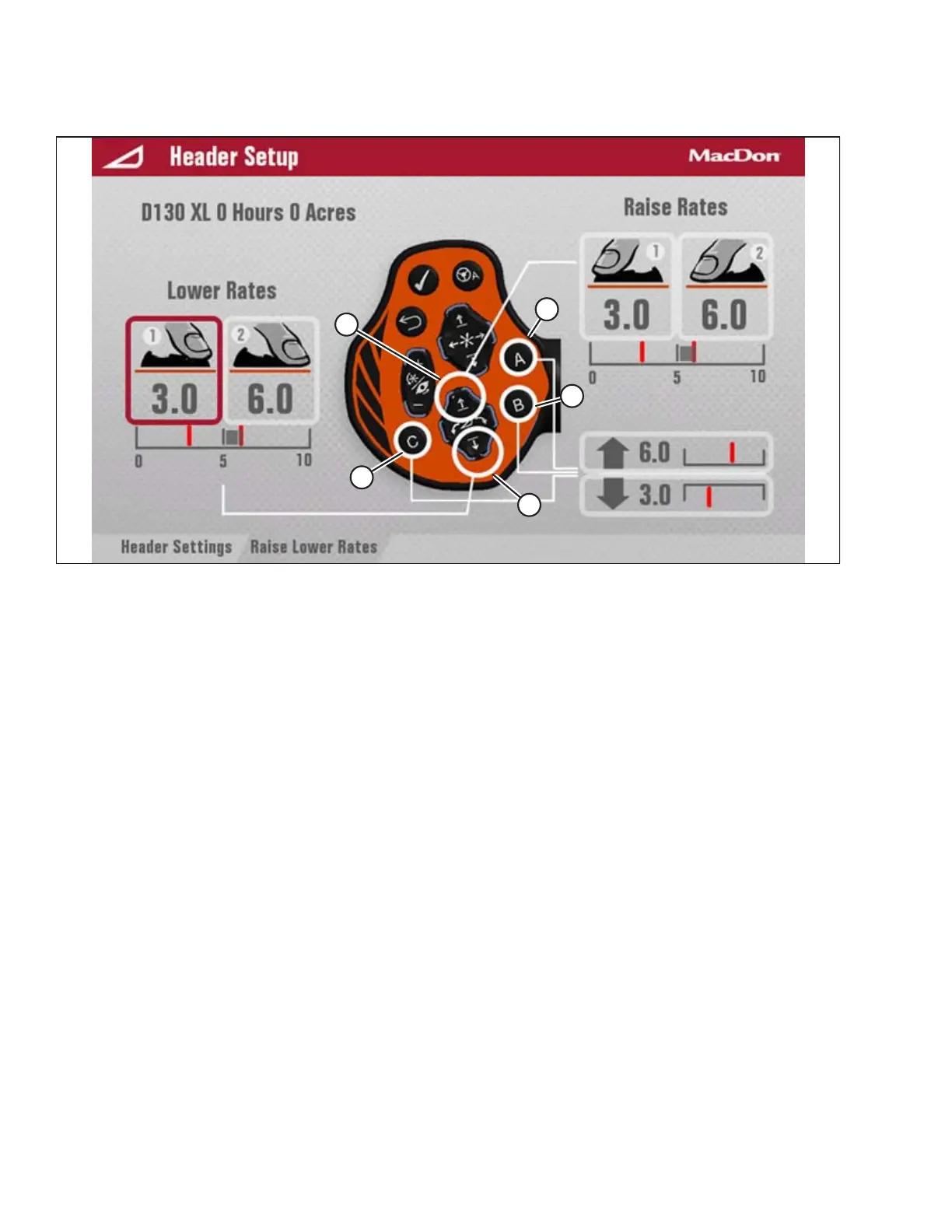

Figure 4.194: Header Raise and Lower Rates
1022350
A
B
C
D
E
7. The header lift/lower rate is adjustable in two stages. A half button press adjusts stage one: the slow rate, and a full
button press adjusts stage two: the fast rate.
Scroll through the RAISE FIRST/RAISE SECOND and LOWER FIRST/LOWER SECOND menu selections, and program the
following GSL buttons:
• HEADER RAISE (D): half press adjusts first (slow rate) stage, full press adjusts second (fast rate) stage
• HEADER LOWER (E): half press adjusts first (slow rate) stage, full press adjusts second (fast rate) stage
• ONE-TOUCH-RETURN buttons (A), (B), and (C): trigger header raise or lower presets.
