214733 244 Revision A

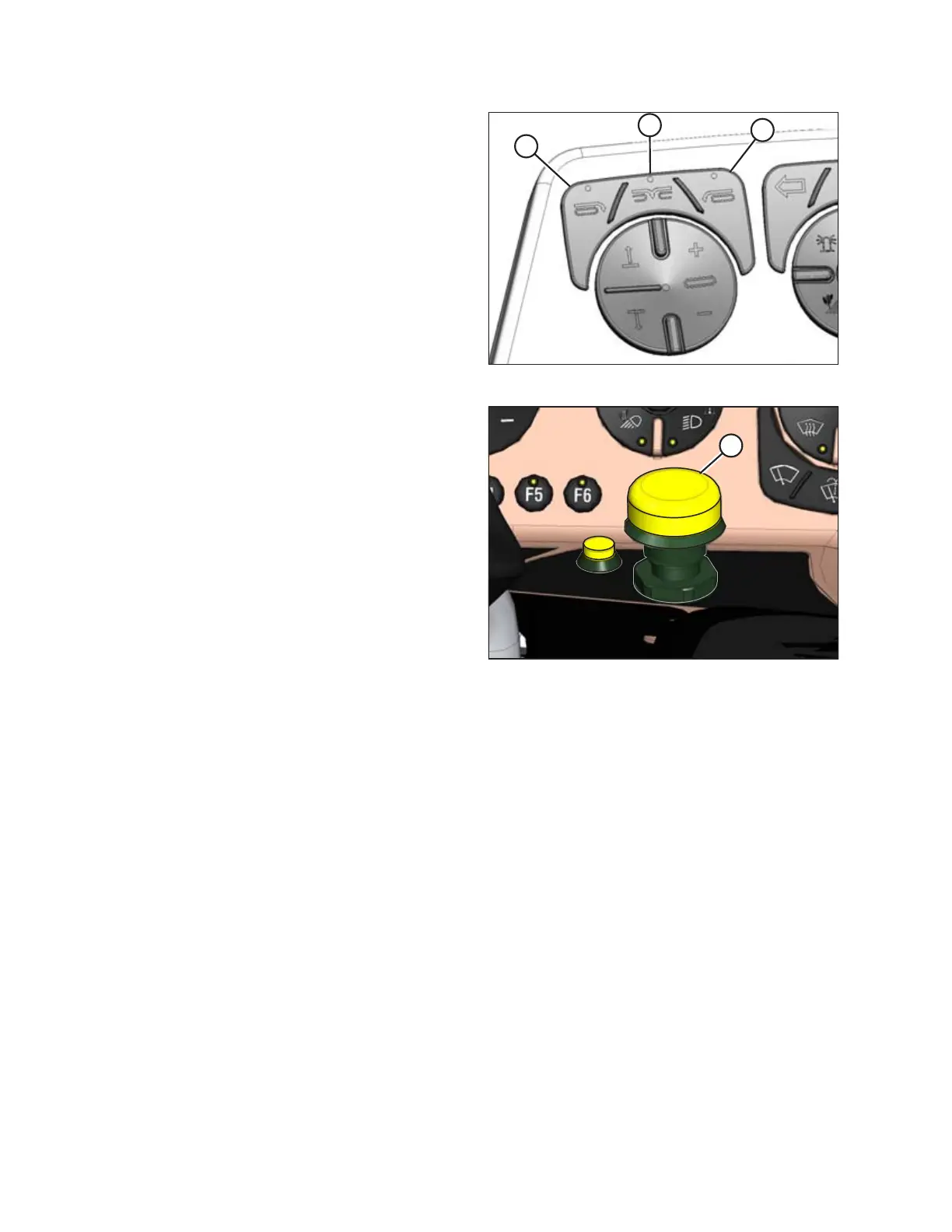

Figure 4.288: Header Deck Shift Switches
3. Select one of the following deck positions using the DECK
SHIFT switches on the operator’s console:
• Right-side delivery (A)
• Center delivery (B)
• Left-side delivery (C)
Figure 4.289: Header Engage Switch
4. Disengage the header by pushing down on HEADER
ENGAGE switch (A).
5. Adjust the float setting for the selected deck position. Refer
to Setting the Float, page 187.
6. Repeat steps for the other deck positions.
OPERATION
