Activating the Exhaust Aftertreatment Functions
Follow these steps to access the exhaust aftertreatment functions on the HPT display.
1015622
A
B

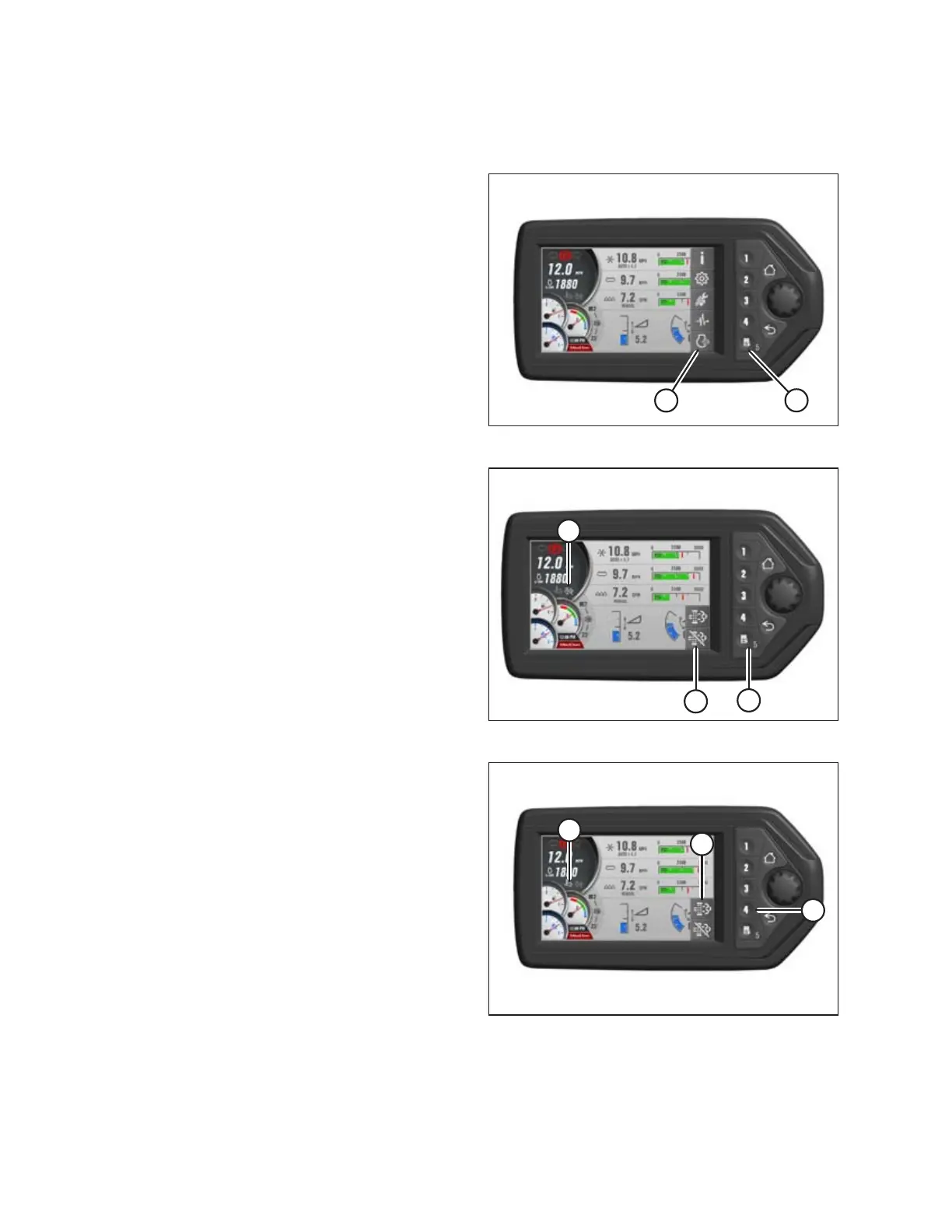

Figure 4.22: HPT Display
1. To display the main menu, press the soft key 5/menu
button (A) on the Harvest Performance Tracker (HPT).
2. To display the manual / inhibit SCR conditioning switches,
press soft key 5/menu button (A) next to the EXHAUST
AFTERTREATMENT icon (B).
1019420
A
B
C
Figure 4.23: HPT Display
3. To inhibit SCR conditioning, press soft key 5/menu (A) next
to the INHIBIT SCR CONDITIONING icon (B), and hold for 3
seconds. The SCR CONDITIONING INHIBIT icon (C) will
appear under the engine rpm display.
1019421
A
B
C
Figure 4.24: HPT Display
4. To select manual SCR conditioning, press soft key 4 (A) next
to the MANUAL SCR CONDITIONING icon (B), and hold for 3
seconds. The high exhaust system temperature (HEST)
icon (C) appears highlighted under the rpm display during
system cleaning.
NOTE:
The HEST icon also appears during normal operation when
exhaust temperature exceeds the maximum temperature
threshold. The icon remains on until the exhaust
temperature drops below the minimum temperature
threshold.
