MacDon M1170 - Page 346

214733 330 Revision A
1018776
A
B

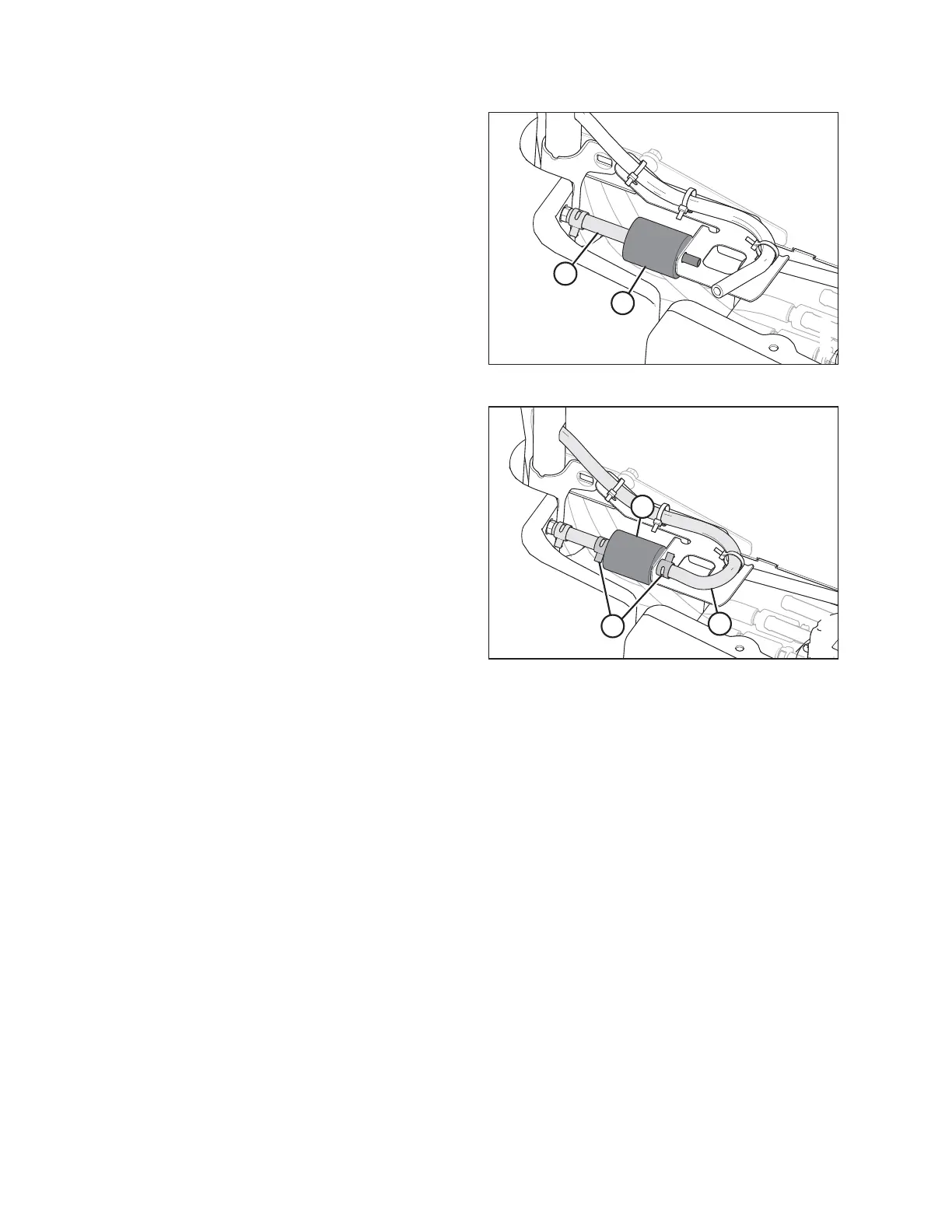

Figure 5.115: Fuel Tank Vent and Filter
5. Position new filter (A) and attach to fuel tank hose (B). The
IN marking on the filter should face away from the fuel tank
hose.
NOTE:
If filter has an arrow instead of an IN marking, arrow should
point toward the fuel tank hose.
1018830
C
B
A
Figure 5.116: Fuel Tank Vent and Filter
6. Attach fuel vent hose (A) to filter (B) and secure both hoses
with tension clamps (C).
7. Close hood. Refer to 5.3.2 Closing Hood, page 257.
MAINTENANCE AND SERVICING
