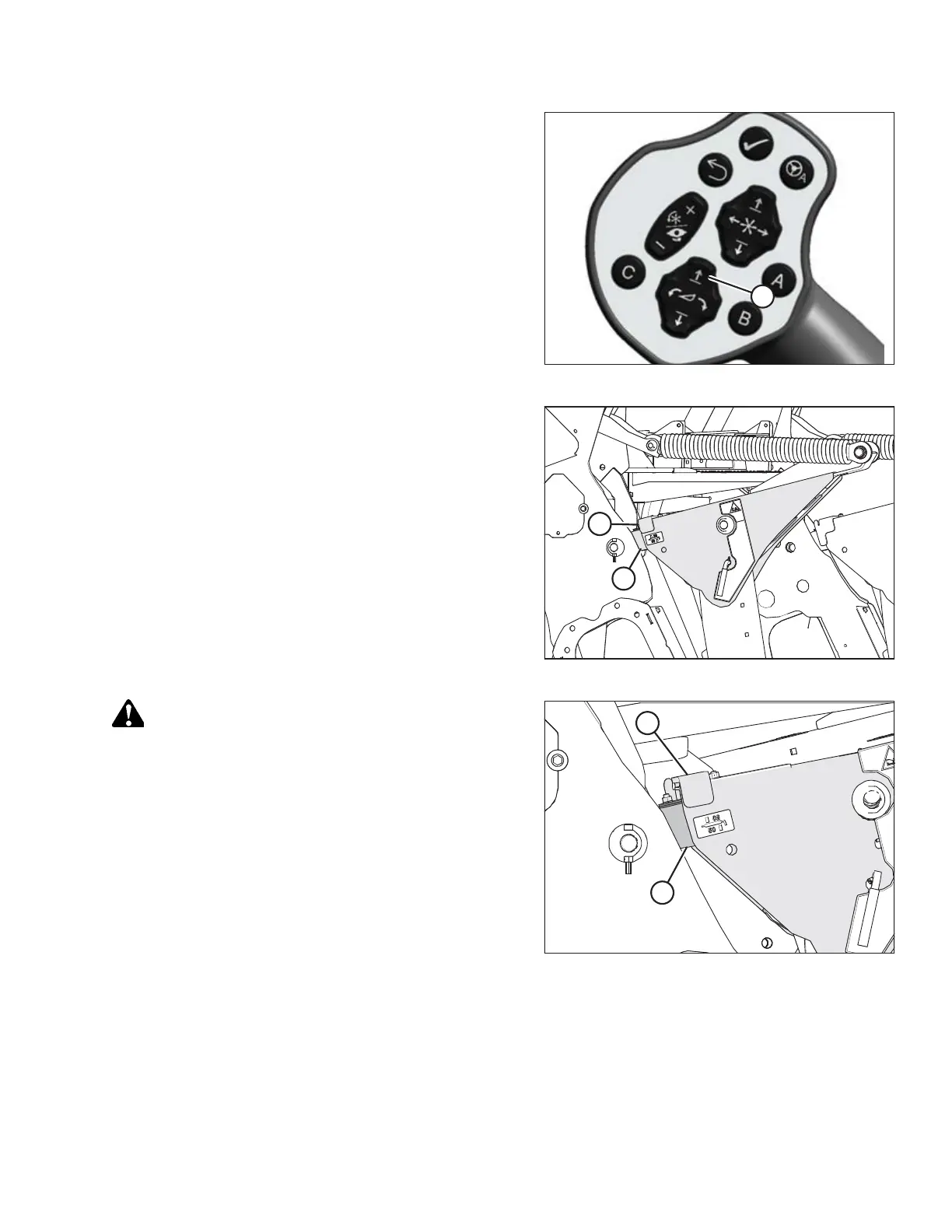

Figure 4.199: GSL
4. Park the windrower on level ground.
5. Press the header raise button (A) on the ground speed
lever (GSL) until the header reaches maximum height.
Continue to hold the header raise button for 3–4 seconds
to rephase the lift cylinders.
Figure 4.200: Lift Linkage
6. Lower the header to approximately 150 mm (6 in.) off the
ground.
7. Ensure that member (A) is against link (B).
8. Stop engine and remove the key from the ignition.
9. Measure the distance to the ground at both ends of the
header to determine if the header is level.
Figure 4.201: Lift Linkage
CAUTION
Check to be sure all bystanders have cleared the area.
10. If adjustment is necessary, start engine and resume float.
Lower the header onto the ground until member (A) lifts
away from the link (B) on both sides.
11. Turn off the engine and remove the key.
