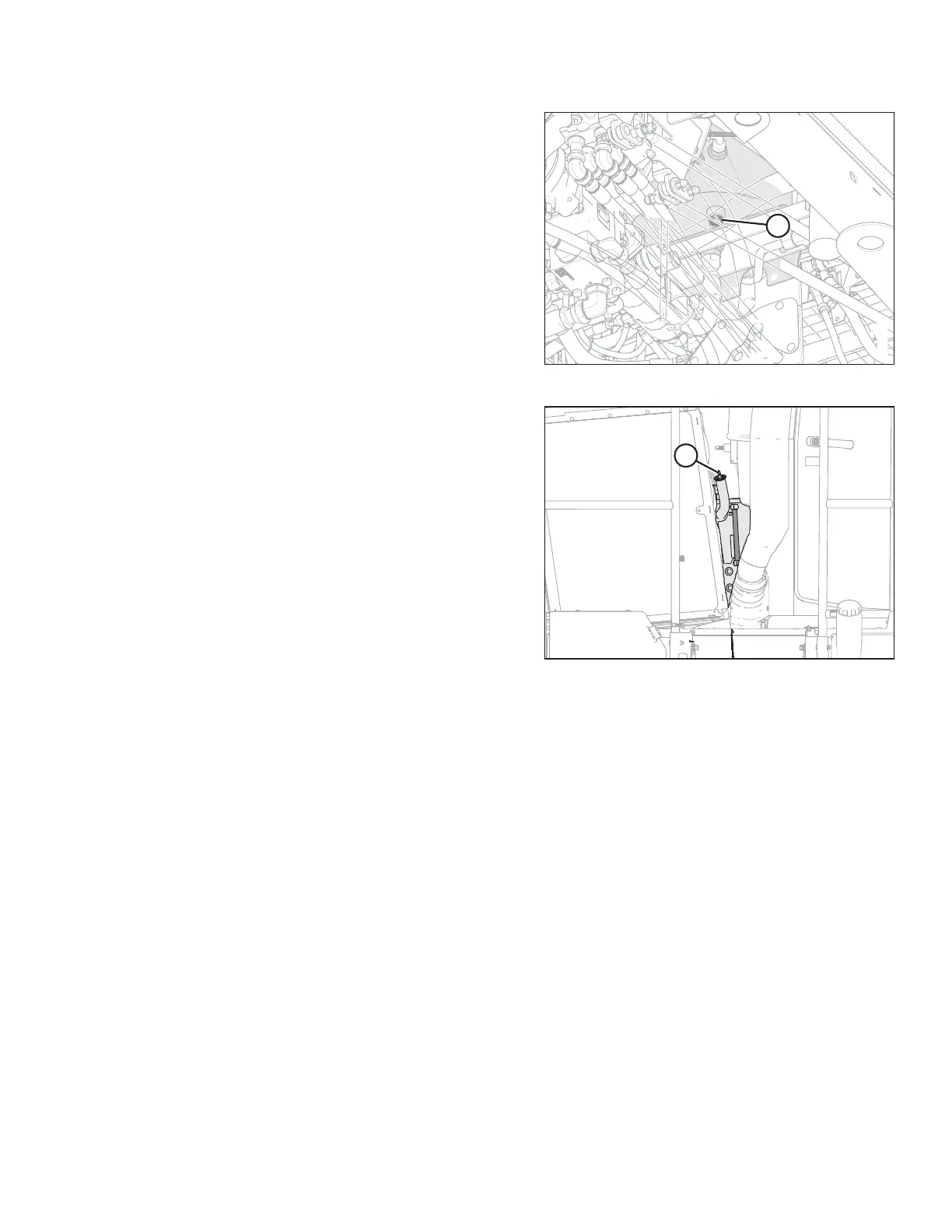

Figure 5.126: Hydraulic Oil Drain
9. Locate and remove the magnetic drain plug (A) that is
underneath the hydraulic oil tank.
NOTE:
Pull the traction drive hoses out of the way to allow oil to
drop straight down into catch pan.
10. Inspect and clean the magnetic drain plug for any debris.
11. Reinstall drain plug. Torque plug to 75–82 Nm
(55–60 lbf·ft).
1012669
A
Figure 5.127: Reservoir Plug
12. Reinstall plug (A) on the hydraulic oil tank.
13. Close the hood. Refer to 5.3.2 Closing Hood, page 257.
14. Dispose of used oil in a manner that complies with local
rules and regulations.
