Removing booster cables
CAUTION
Spark hazard. When disconnecting booster cables, do not allow the cable clamps to touch each other.
+
–
1015680
D
C
B
A

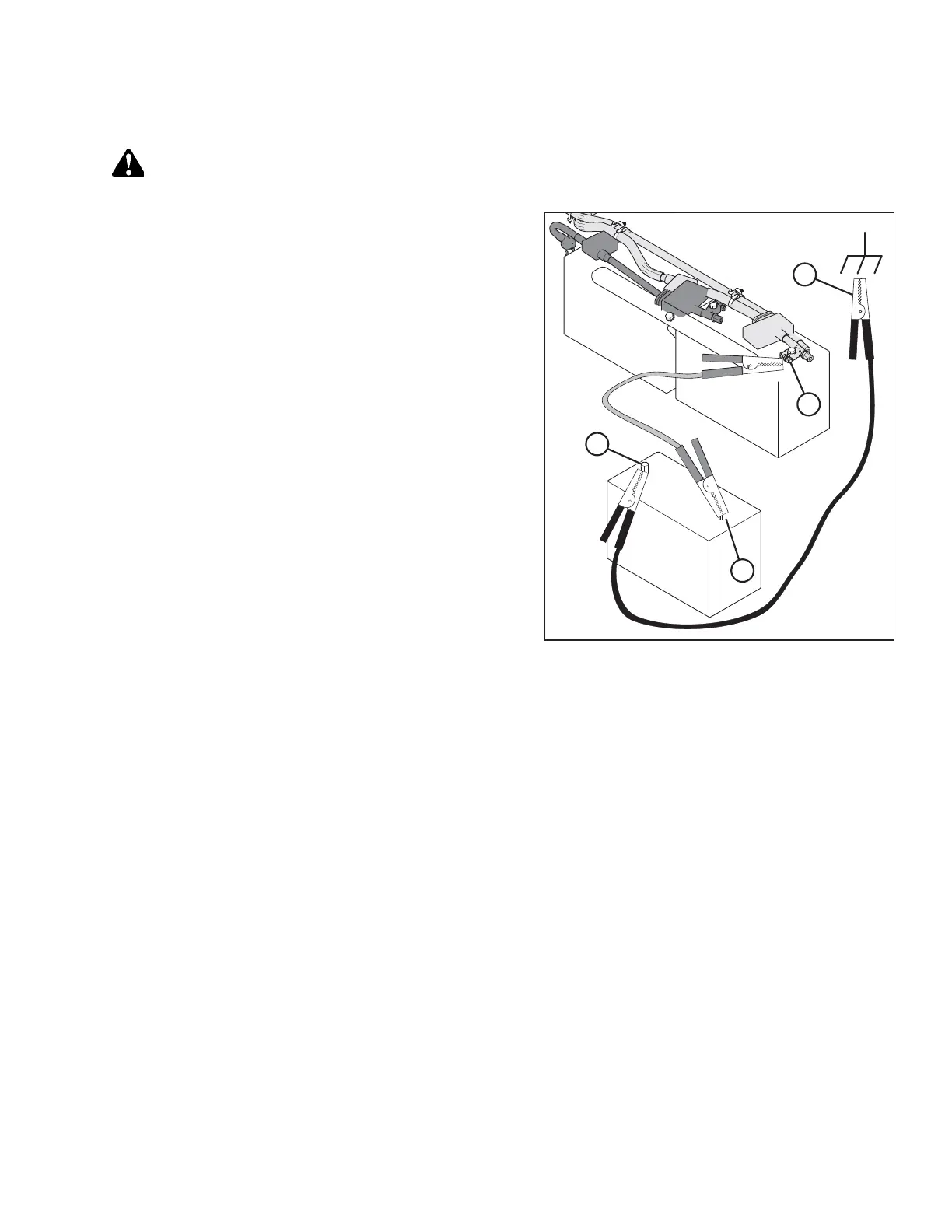

Figure 5.137: Removing Booster Cables
1. Disconnect the negative (-) booster cable (A) from the
engine of the unit that was boosted.
2. Disconnect the other end of the negative (-) booster cable
from the negative (-) battery post (B) of the booster battery.
3. Disconnect the positive (+) booster cable from the
positive (+) battery post (C) of the booster battery.
4. Disconnect the other end of the positive (+) booster cable
from the positive (+) battery post (D) of the boosted
battery.
5. Replace the black and red rubber battery terminal covers.
6. Close the battery cover. Refer to Closing Battery Cover,
page 343.
